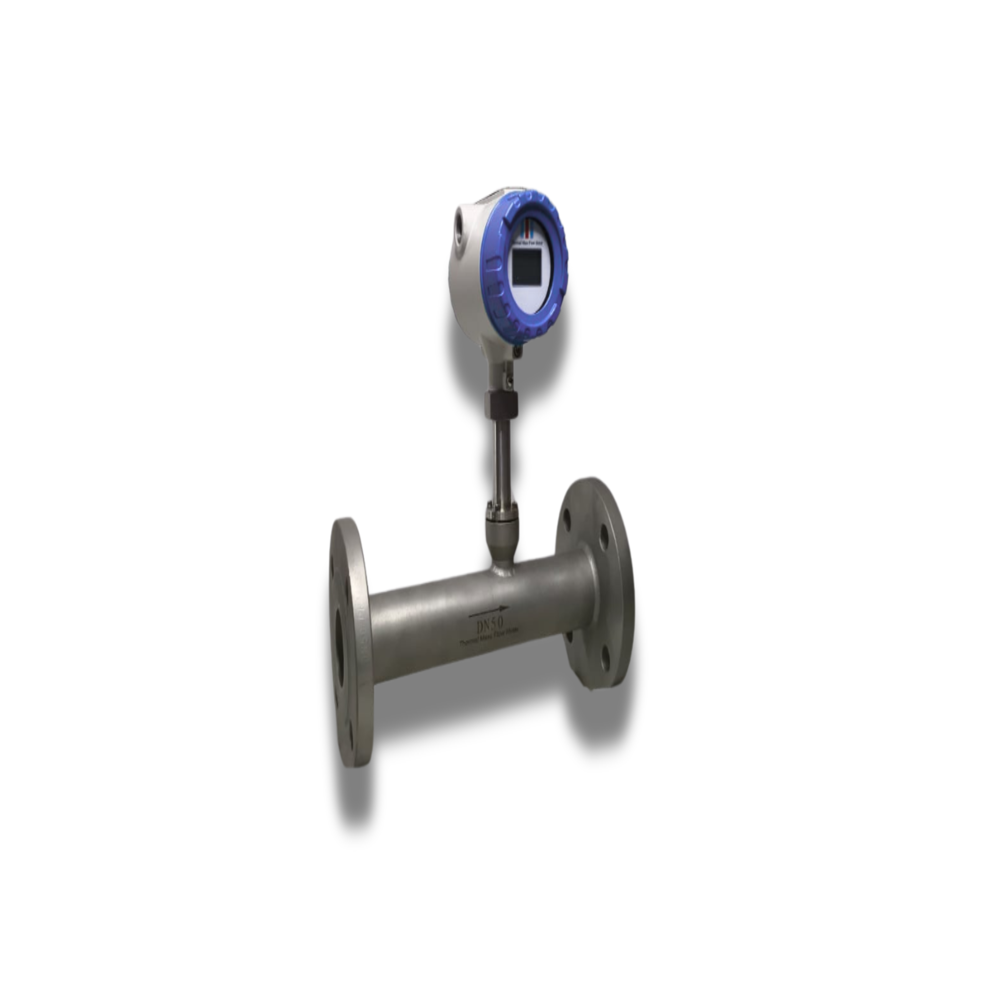

MTF 500 INLINE THERMAL MASS FLOW METER 50mm
MTF 500 INLINE THERMAL MASS FLOW METER 50mm
MTF 500 INLINE THERMAL MASS FLOW METER 50mm
MTF 500 INLINE THERMAL MASS FLOW METER 50mm

MTF 500 INLINE THERMAL MASS FLOW METER 50mm

Price 158802.00 INR/ Unit

MOQ : 1 Unit

MTF 500 INLINE THERMAL MASS FLOW METER 50mm Specification

  • Output
  • 4 20 mA, Pulse Output, Relay Output
  • Equipment Type
  • Inline Thermal Mass Gas Flow Meter
  • Protection
  • IP65
  • Connecting Type
  • Flanged
  • Model
  • MTF 500
  • Operating Temperature
  • -40 C to +200 C Celsius (oC)
  • Current Range
  • 4 20 mA Milliamperes (mA)
  • Flow Rate
  • 100:1
  • Measurement Range
  • 50mm
  • Signal Type
  • Thermal Dispersion
  • Process Connection
  • ANSI Class 150 Flanges
  • Mounting
  • Inline
  • Input
  • 24 VDC, 2A
  • Housing Material
  • Aluminum
  • Velocity Range
  • 0.1 100 Nm/s
  • Sensor Type
  • Thermal Dispersion
  • Application Media
  • Various Gases
  • Stability
  • High Stability
  • Measuring Units
  • Mass Flow, Volumetric Flow, Totalizer, Velocity
  • Temperature Range
  • -40 C to +200 C Celsius (oC)
  • Pressure Range
  • Standard: 1.6 MPa
  • Diameter
  • 50mm Millimeter (mm)
  • Connectivity Type
  • Modbus RS485
  • Usage
  • Industrial Gas Flow Measurement
  • Material
  • Stainless Steel 316
  • Size
  • 50mm
  • Height
  • 315 Centimeter (cm)
  • Power Supply
  • 24VDC
  • Product Type
  • Inline Thermal Mass Flow Meter
  • Accuracy
  • 1.0% %
  • Weight
  • 9 Kilograms (kg)
  • Display Type
  • Digital Only
  • Width
  • 152.4 Centimeter (cm)
  • Range
  • 0.1 100 Nm/s
  • Length
  • 350 Centimeter (cm)


MTF 500 INLINE THERMAL MASS FLOW METER 50mm Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 4 Week
  • Main Domestic Market
  • All India
  • Certifications
  • Calibration certification


About MTF 500 INLINE THERMAL MASS FLOW METER 50mm


Flow measurement Thermal dispersion
Fluid types Various gases (Except the acetylene)
Fluid properties Thermal Conductive Fluid
Pipe sizes DN 15mm -DN 300mm
Pipe materials Standard: Carbon steel
Optional : Stainless steel,Plastic, etc
Flow accuracy 1.0%
Velocity 0.1~100 Nm/s
Flow rate turndown 100:01
Measurement parameters Mass flow rate, Nominal flow rate, Flow totallizer, Velocity,
Certification Calibration certification
Transmitter Type Standard Standard : Integral
Optional :Remort
Enclosures Transmitter Type Aluminium
Enclosure IP rating IP65
Power supply 24 VDC,2A
Ambient temperature 32F to 140F (0C to 60C)
Standard output 4-20mA Pulse output
Alarm Output 1-2 way Relay, Normally Open state 5A/30V/DC
Network Connection Modbus RS 485
Operating Temperature range -40 F to 428 F (-40C to 200C)
Nominal Pressure Srandard : 1.6 Mpa
Optional : 2.5Mpa, 4.0 Mpa (Inline)
Process connections ANSI class 150 Flanges
Materials Stainless Steel 316
IP rating IP65


ABOUT

Introducing the MTF 500/600 Thermal Mass Flow Meter, precise gas flow measurement for various sectors. Advanced thermal dispersion technology ensures accuracy and durability. Ideal for optimizing industrial, HVAC, and ensuring environmental compliance, its compact design simplifies installation. Perfect for chemical production, environmental monitoring, or aerospace testing, it provides reliable data for all gas monitoring needs.

Features

  • Measuring the Mass Flow or Volume Flow of Gas
  • Optional* Temperature Monitoring
  • Exceptional Vibration Resistance and Long service Life
  • Easy Installation and Maintenance
  • Digital Design for High Accuracy and Stability

FAQ

Q: What is the MIAL Inline Thermal Mass Flow Meter used for?

A: It is used for accurate measurement of air and gas flow applications.

Q: Is the thermal mass flow meter suitable for compressed air systems?

A: Yes, it is ideal for compressed air and industrial gas monitoring.

Q: Does the meter require pressure or temperature compensation?

A: No, the meter provides direct mass flow measurement without external compensation.

Q: Can the MIAL Thermal Mass Flow Meter measure low flow rates?

A: Yes, it offers excellent sensitivity for low flow measurements.

Q: Is the meter suitable for industrial applications?

A: Yes, it is designed for HVAC, process industries, and utility gas applications.


Technical Details

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Thermal Mass Flow Meter Category

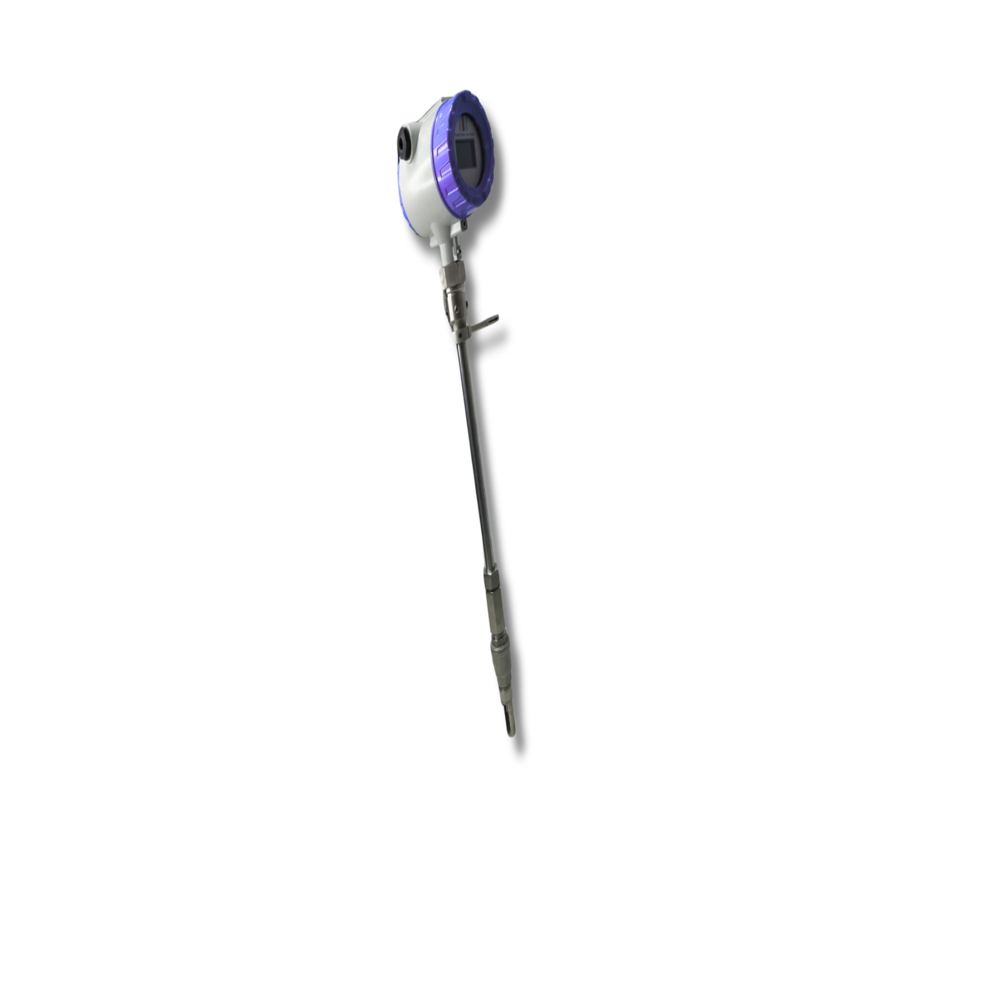

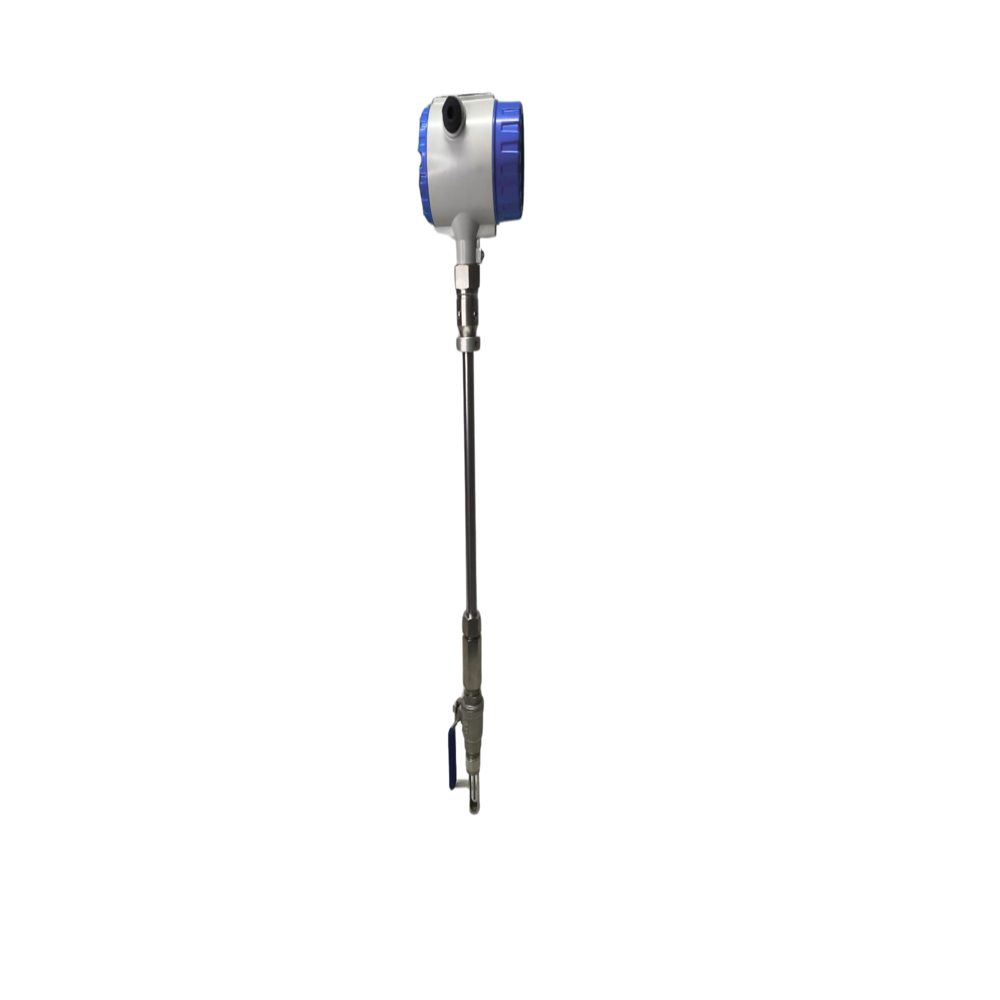

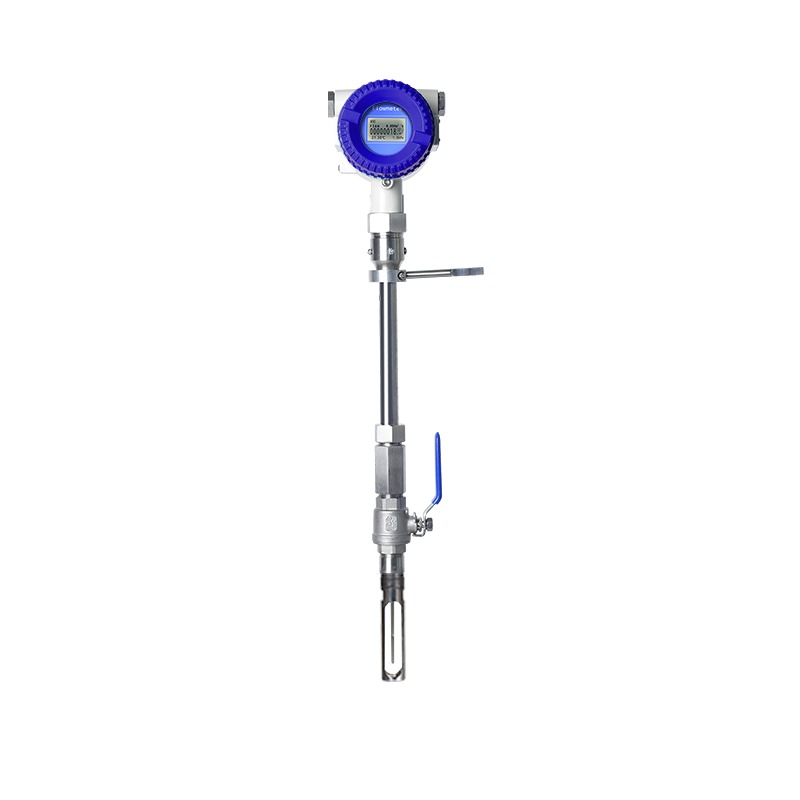

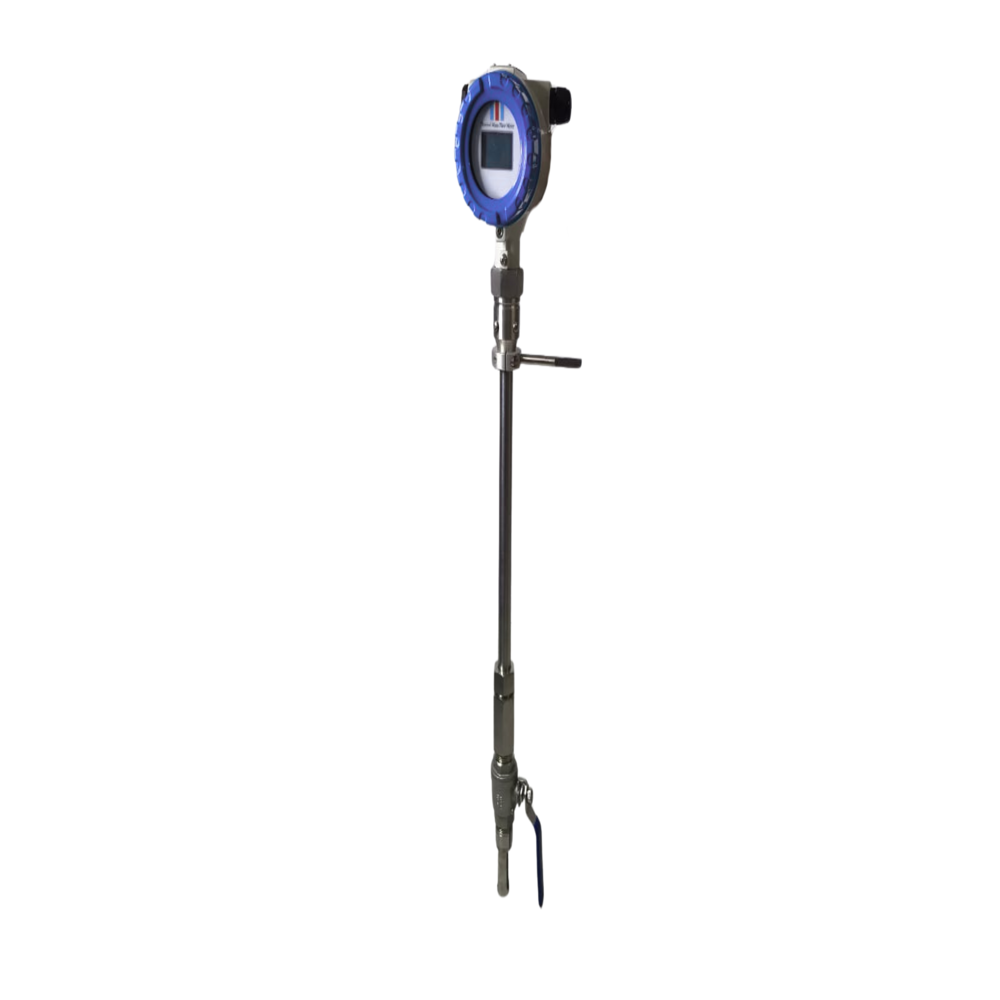

MTF 600 INSERTION THERMAL MASS FLOW METER
