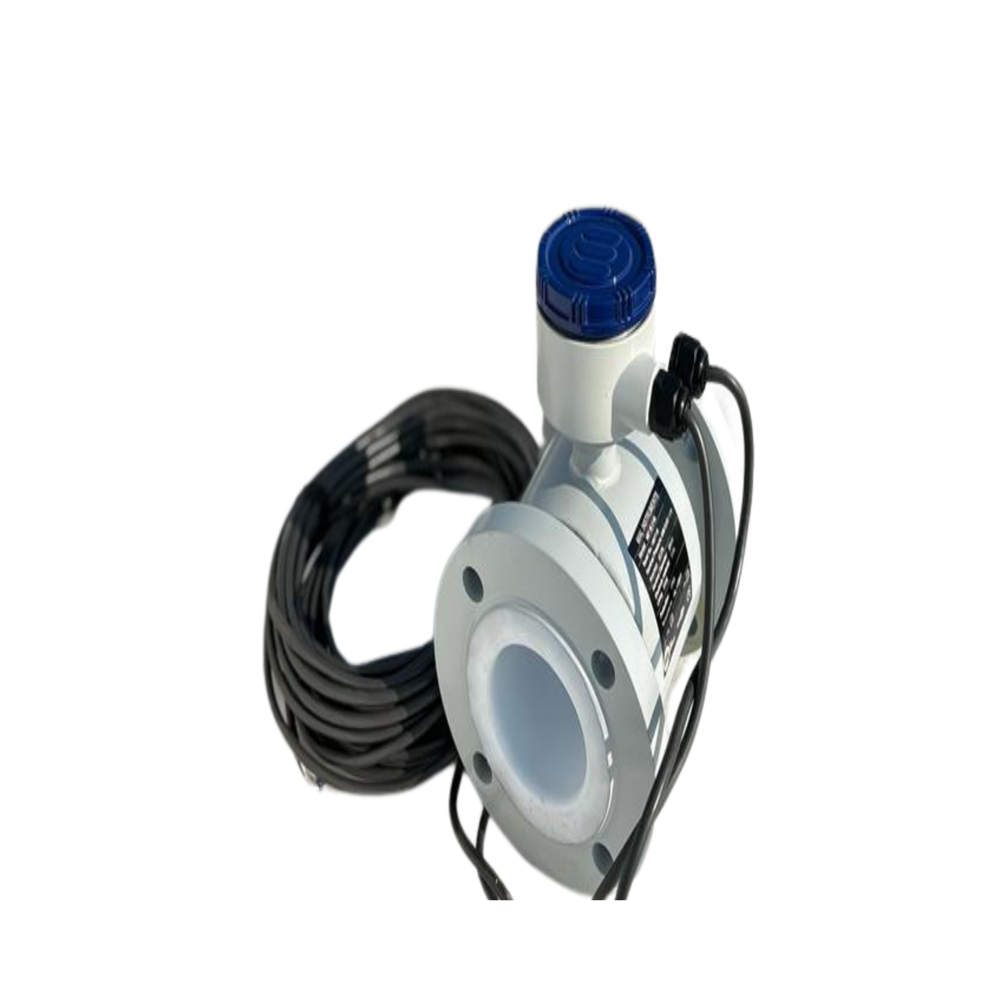

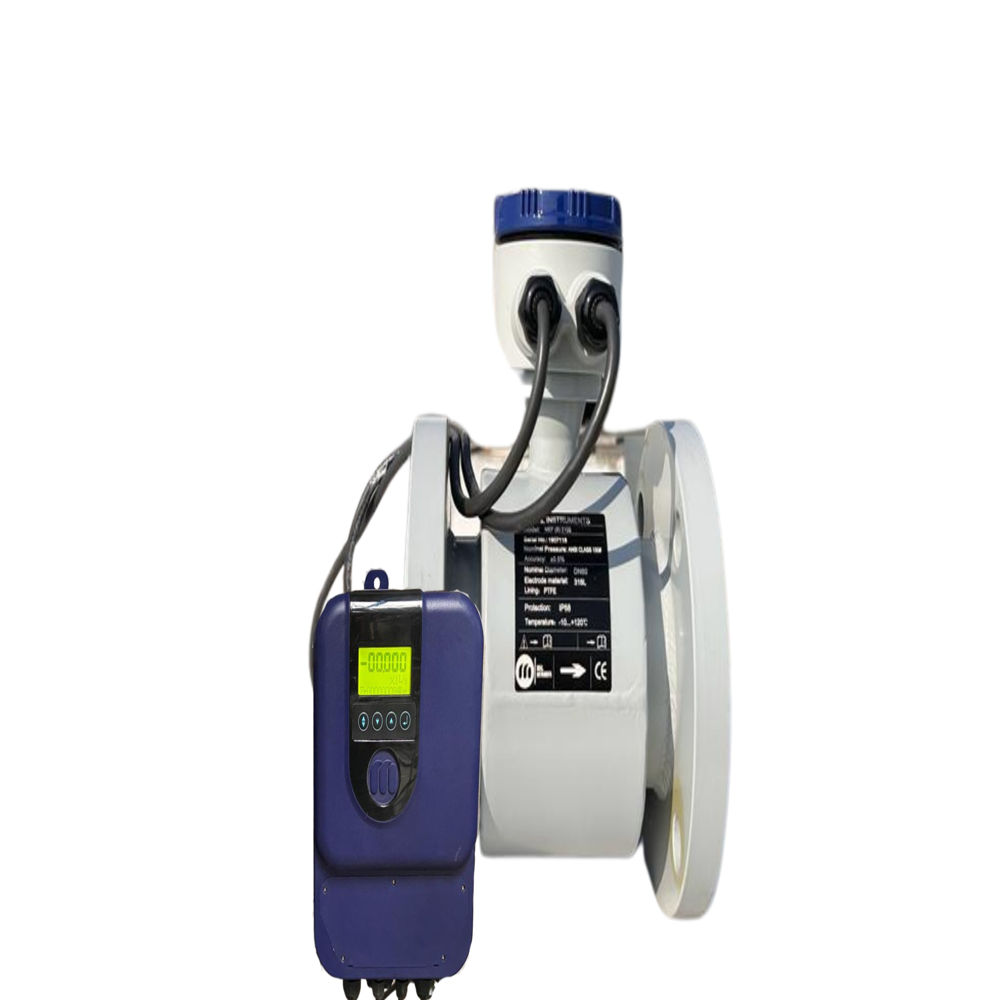

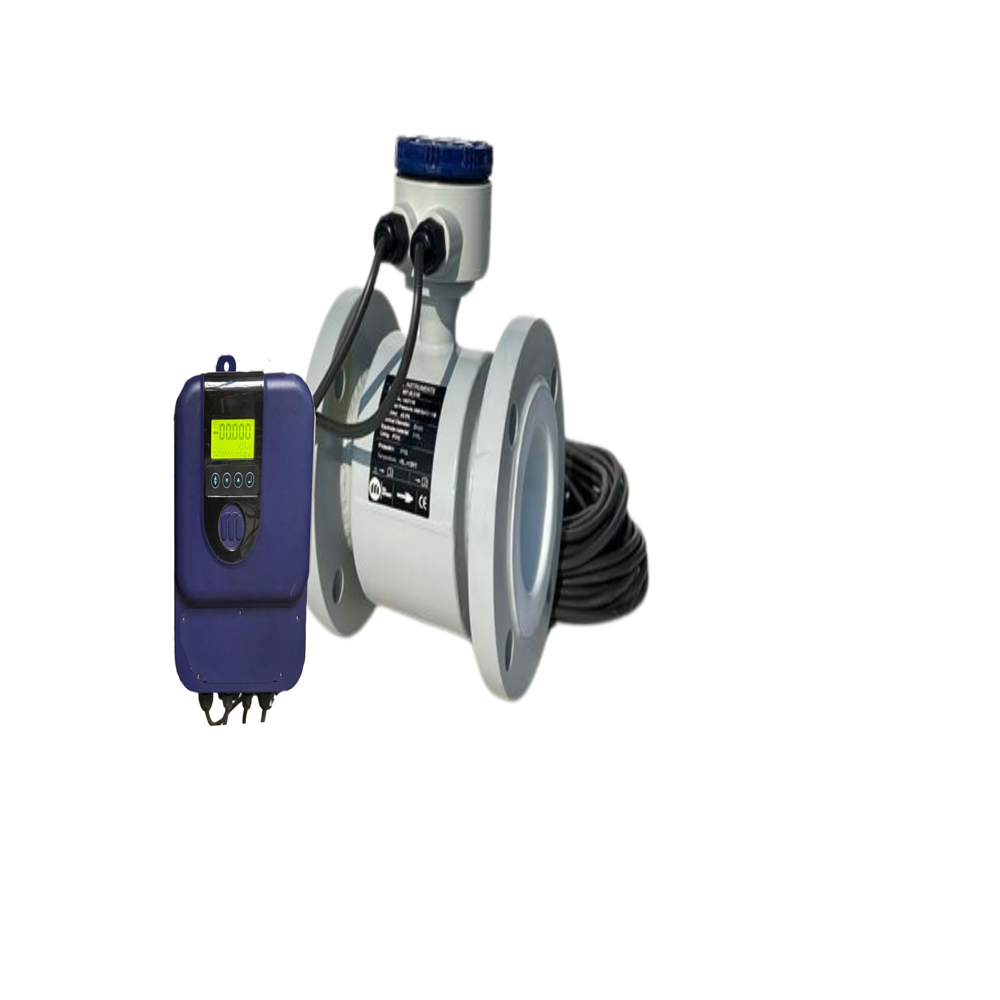

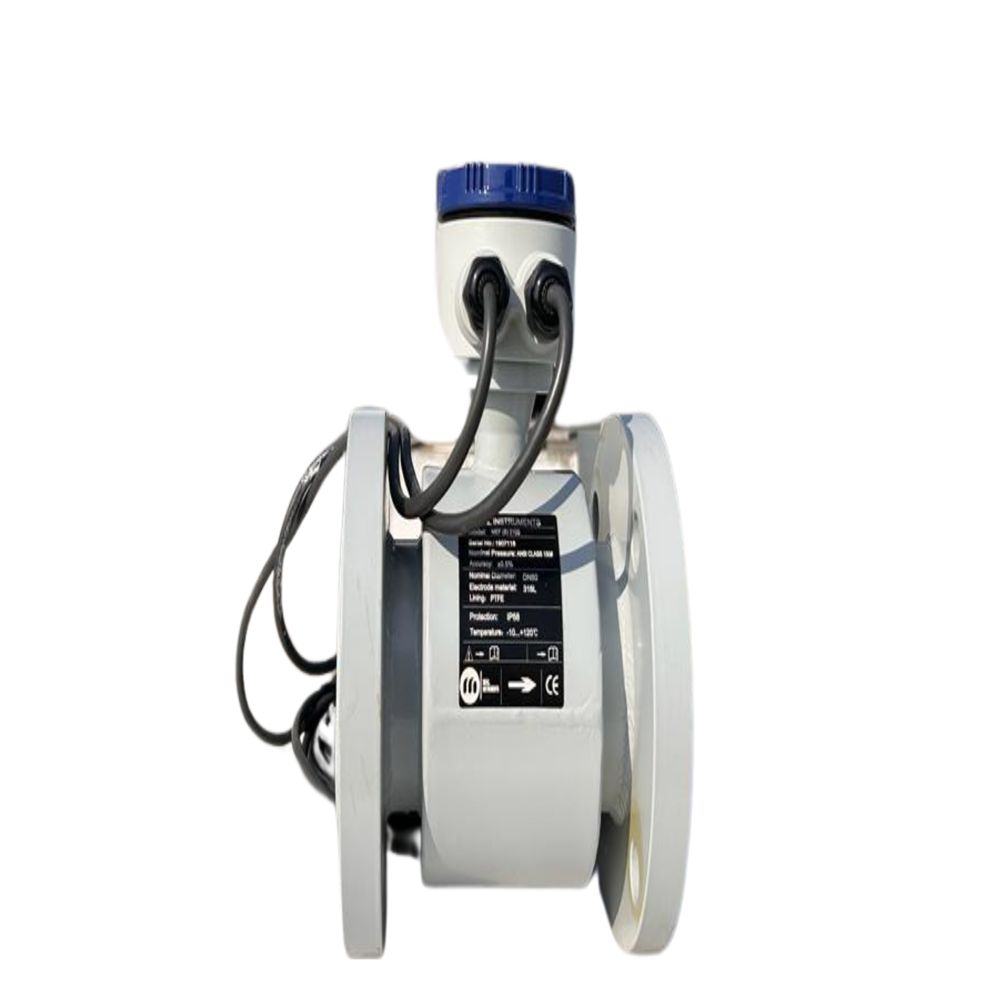

MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE
MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE

MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE

Price 26900.00 INR/ Unit

MOQ : 1 Unit

MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE Specification

  • Mounting
  • Remote-Mounted
  • Diameter
  • 15 mm Millimeter (mm)
  • Operating Temperature
  • -10 C to 120 C Celsius (oC)
  • Process Connection
  • Flanged
  • Language
  • Measurement Range
  • 0.09 ft/s to 40 ft/s
  • Model
  • MEF 2100-015
  • Input
  • Electromagnetic flow measurement
  • Output
  • RS485 Modbus, 4-20 mA, Pulse
  • Protection
  • IP68
  • Signal Type
  • Connecting Type
  • Flanged
  • Application Media
  • water, chilled water, hot water, condensate water, wastewater
  • Equipment Type
  • Electromagnetic Flow Meter
  • Material
  • MS / SS
  • Power Supply
  • 24VDC
  • Power Consumption
  • . Watt (W)
  • Accuracy
  • 0.5% %
  • Display Type
  • Digital Only
  • Range
  • 15 mm to 2000 mm


MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 10 Days
  • Main Domestic Market
  • All India
  • Certifications
  • Calibration certification


About MEF 2100-015 INLINE ELECTROMAGNETIC FLOW METER REMOTE TYPE



Fluid Type Electrically conductive fluids such as water
Conductivity >20 S
Pipe Sizes 15 mm - 2000 mm
Accuracy Standard: 0.5%
Optional: 0.2%
Repeatability 0.15%
Measuring Range 0.09 ft/s to 40 ft/s
Measurement Parameters Instantaneous Flow Rate, Totalized Flow
Electronics Enclosure ABS
IP Rating IP65 / IP68
Memory EEPROM
Power Supply 24 VDC
Ambient Temperature 0C - 60C
Operating Temperature -10C - 120C
Standard Outputs 4-20 mA, Pulse
Network Connection Modbus RS 485
Process Connection Standard: ANSI #150
Optional: ANSI #300
Nominal Pressure Standard: 1.6 MPa
Optional: 2.5 MPa, 4.0 MPa, 5.0 MPa
Flow Tube Standard: SS304
Optional: SS316
Electrode Material Standard: SS316L
Optional: Hastelloy, Titanium, Tantalum
Liner Material Standard: PTFE
Optional: Ebonite, Polyebonite, Polyurethane, PFA
Flange Material Standard: Carbon Steel
Optional: Stainless Steel

ABOUT

Meet our MEF 2100 series inline electromagnetic flow and BTU meters, designed for accurate measurement of fluid flow and thermal energy flows in a variety of applications.

Our products are versatile, suitable for use in sectors including HVAC, water management, and industrial processes. Each BTU meter comes with highly accurate PT1000 temperature sensors and is calibrated to ensure precision for your specific application needs. Ideal for ensuring efficiency and reliability in your operations, our meters are backed by detailed calibration certificates.

Features
  • Non-intrusive measurement
  • Wide flow range
  • Accurate and reliable measurements
  • Bi-directional flow measurement
  • Wide fluid compatibility
  • Wide pipe size range - 15mm - 2000mm
  • Digital communication capabilities
  • Low maintenance requirements



FAQ

Q. Can the meter be connected to BMS or SCADA systems?

A.Yes. The MEF 2100 can be integrated with:

  • Building Management Systems (BMS)
  • SCADA Systems
  • PLC Controllers
  • Energy Monitoring Systems
  • using Modbus RS485 and analog outputs.

Q. What is the minimum conductivity required?

The liquid should have minimum 30us conductivity as specified in the technical datasheet for proper measurement performance.

Q. Does the meter require periodic maintenance?

The MEF 2100 has no moving parts, resulting in low maintenance requirements. Periodic inspection and cleaning may be recommended depending on fluid quality.

Q. What is the maximum cable distance between sensor and transmitter?

The allowable cable distance is 10m .

Q. Why choose Mial MEF 2100?

A. Key advantages include:

  • High Accuracy
  • Reliable Performance
  • No Moving Parts
  • Low Pressure Drop
  • Easy Integration with BMS/SCADA
  • Suitable for HVAC & Industrial Applications
  • Robust Construction
  • Low Maintenance


Technical Details
