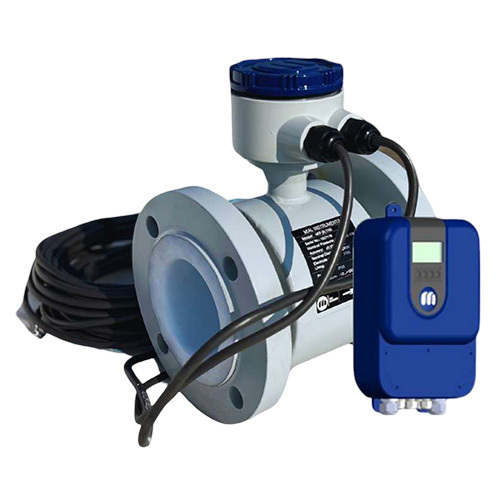

MEF 2100 Inline Electromagnetic BTU Meter - Remote Type

Name: MEF 2100 Inline Electromagnetic BTU Meter - Remote Type
Brand: MIAL INSTRUMENTS PRIVATE LIMITED
Price: 69990.0 INR
Availability: InStock

Price 69990.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MEF 2100 Inline Electromagnetic BTU Meter - Remote Type Specification

Process Connection
Standard : ANSI #150, Optional : ANSI # 300

Temperature Range
0°C - 60°C Celsius (oC)

Operating Temperature
-10°C - 120°C Celsius (oC)

Power Supply
24 VDC

Linear Material
Standard : PTFE Optional: Ebonite,Polyebonite,Polyurethene, PFA

Flow Tube
Standard : SS304 Optional : SS316

Repeatability
0.27%

Conductivity
>20us

Electrode Material
Standard : SS 316 L Optional : Hastelloy, Titanium, Tantalum

Nominal Pressure
Standard : 1.6 Mpa Optional : 2.5Mpa,4.0 Mpa,5.0 Mpa

Fluid Type
Electrically conductive Fluids such as water

IP Rating
IP65 /IP68

Accuracy
Standard : 0.5% Optional : 0.2%

Temperature Sensor
PT 1000

Memory
EEPROM

Measuring Range
0.09ft/s to 40ft/s

Measurement Parameters
Instantaneous energy rate, totalized energy, Instantaneous flow rate, totalized flow,supply temperature and return temperature

Network Connection
Modbus RS 485

Electronics Enclosure
ABS

Pipe Sizes
15mm -2000mm

Flange Material
Standard : Carbon Steel Optional : Stainless Steel

Standard Outputs
4-20mA , Pulse

MEF 2100 Inline Electromagnetic BTU Meter - Remote Type Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

MEF 2100 Inline Electromagnetic BTU Meter - Remote Type About

ABOUT

Meet our MEF 2100 series inline electromagnetic flow and BTU meters, designed for accurate measurement of fluid flow and thermal energy flows in a variety of applications.

Our products are versatile, suitable for use in sectors including HVAC, water management, and industrial processes. Each BTU meter comes with highly accurate PT1000 temperature sensors and is calibrated to ensure precision for your specific application needs. Ideal for ensuring efficiency and reliability in your operations, our meters are backed by detailed calibration certificates.

Features :

Non-intrusive measurement
Wide flow range
Accurate and reliable measurements
Bi-directional flow measurement
Wide fluid compatibility
Wide pipe size range - 15mm - 2000mm
Digital communication capabilities
Low maintenance requirements

FAQ's of MEF 2100 Inline Electromagnetic BTU Meter - Remote Type:

Q. Can the meter be connected to BMS or SCADA systems?

A.Yes. The MUF(B) 2100 can be integrated with:

Building Management Systems (BMS)
SCADA Systems
PLC Controllers
Energy Monitoring Systems

using Modbus RS485 and analog outputs

Q. Does the meter require periodic maintenance

A. The MUF(B) 2100 has no moving parts, resulting in low maintenance requirements. Periodic inspection and cleaning may be recommended depending on fluid quality.

Q. How does the BTU meter calculate energy?

A. The meter calculates energy based on:
