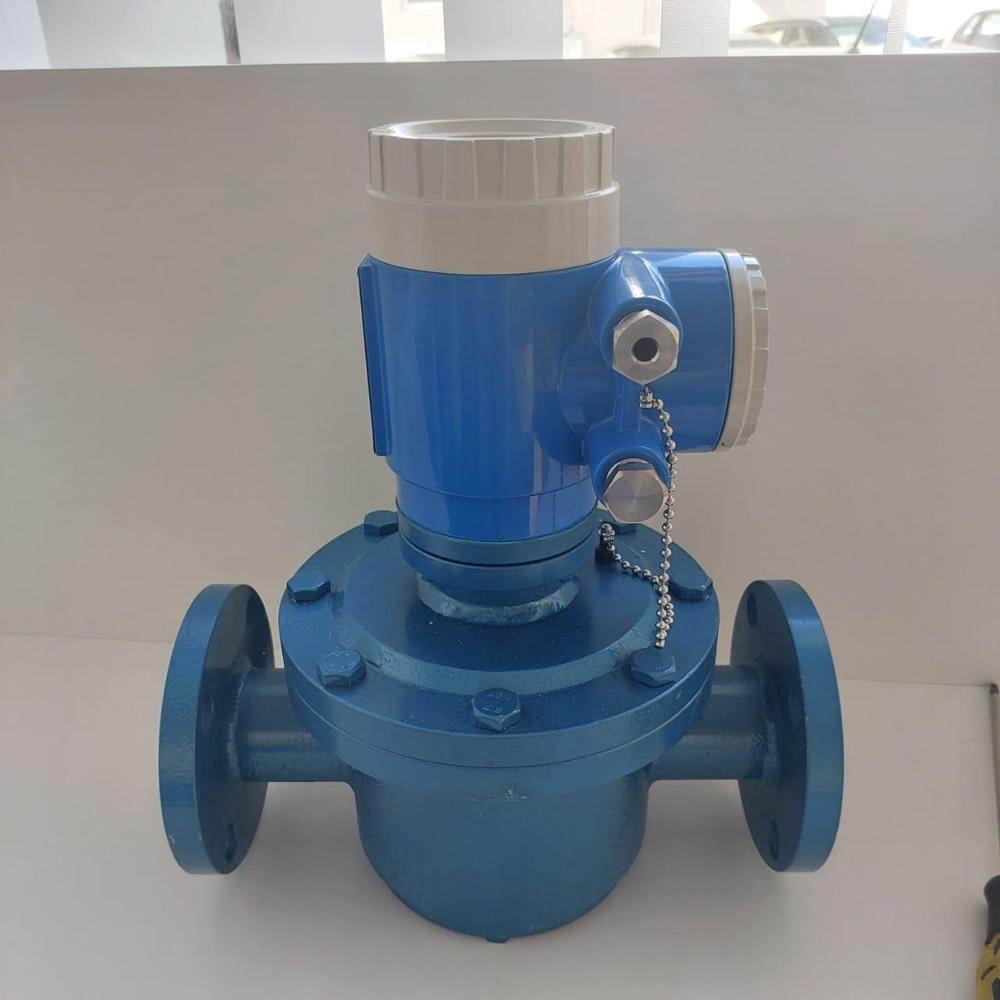

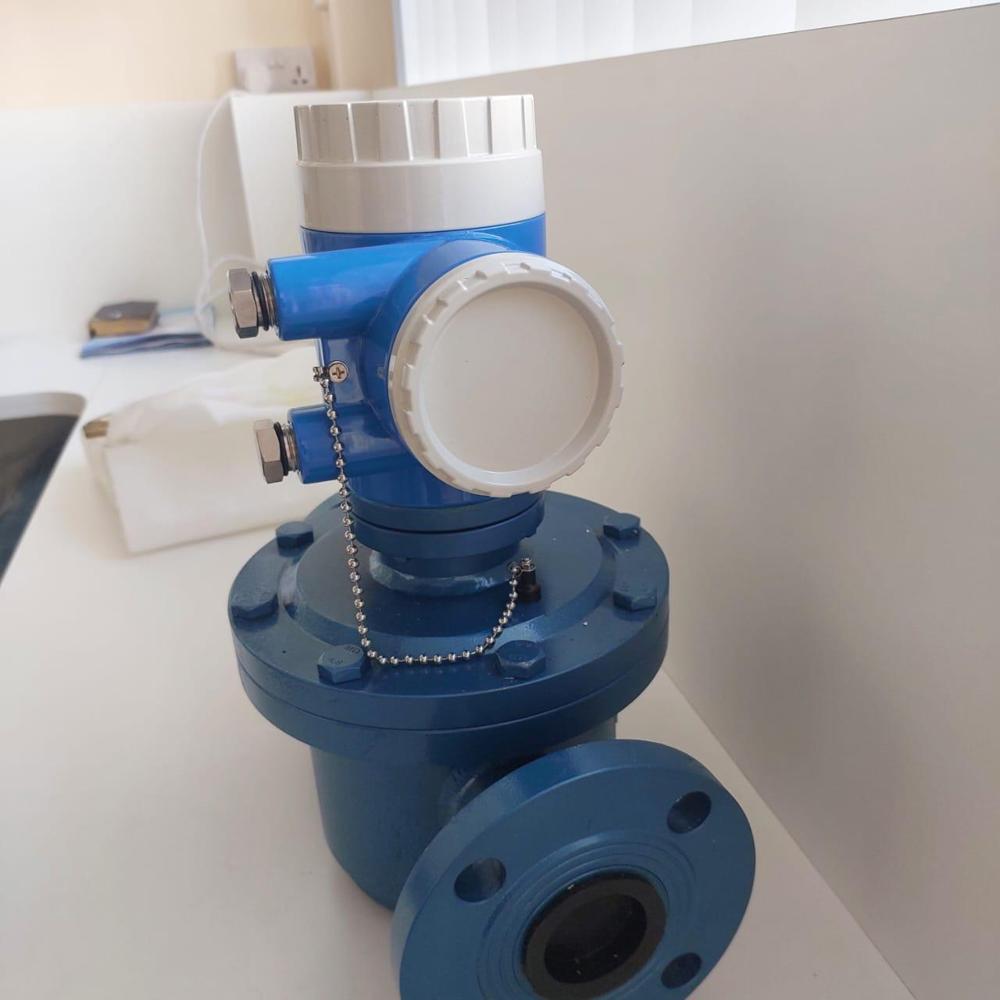

MOF 200-Oval Gear Flow Meter
MOF 200-Oval Gear Flow Meter
images Send Inquiry
Request To Call Back

MOF 200-Oval Gear Flow Meter

Price 17000 INR/ Unit

Get a Price/Quote
MOQ : 1 Unit

MOF 200-Oval Gear Flow Meter Specification

  • Measurement Range
  • 0.5-5 LPM
  • Equipment Type
  • Oval Gear Flow Meter
  • Diameter
  • 15 Millimeter (mm)
  • Pressure Range
  • 1.6 - 6.3MPa
  • Sensor Type
  • Oval Gear
  • Connectivity Type
  • Modbus RTU RS 485
  • Temperature Range
  • -20C to 200 Celsius (oC)
  • Flow Rate
  • 0.5-5 LPM
  • Application Media
  • Oil
  • Material
  • Cast Iron
  • Power Supply
  • 24 VDC / 2A
  • Accuracy
  • 0.2 %
  • Display Type
  • No Display
  • Range
  • 0.5-5 LPM
  • Max Viscosity
  • 100 cSt
  • Make
  • Mial Instruments
  • Pipe Size Range
  • DN8mm-DN200mm
  • Process Connection
  • ANSI 150 Flanges
  • Operating Temp.
  • Up to 200C
  • End Connection
  • Flanged
  • Body Material
  • Cast Iron
  • Nominal Pressure
  • Up to 6.3MPa
  • Model Name
  • MOF 200
  • Standard Analog O/P
  • 4-20mA


MOF 200-Oval Gear Flow Meter Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 30 Days
  • Main Domestic Market
  • All India


About MOF 200-Oval Gear Flow Meter

Feature

  • Wide metering range
  • Suitable for high-viscosity liquids
  • Positive displacement flow meter
  • Minimal Pressure loss
Operation and performance
Flow measurementGear Technology ( positive displacement flow meter)
Fluid typesFuel oil, Petroleum, Petroleum Products,Vegetable Oil, Food, Chemicals
Fluid propertiesFluid with viscosity: 2~200mPa.s
Pipe sizesDN 8mm DN 200mm
Flow accuracy0.5%;
Measurement parametersInstantaneous flow,Totalized Flow
CertificationCalibration certification
Electronics
Transmitter TypeIntegral
Enclosure IP ratingIP65
Power supply24 VDC
Use SMPS when employing AC power
Ambient temperature32F to 131F ( 0 to 55)
Standard outputAnalog output : 4-20mA Pulse output
Network ConnectionModbus RTU RS 485
Operating Temperature rangeStandard : -4F to 140 F (-20C to 60C) Optional : -4F to 302 F (-20C to 150C)
Nominal PressureStandard 1.6 Mpa
Optional : 2.5 Mpa, 4.0 Mpa, 6.4 Mpa
Process connectionsANSI class 150 Flanges
Flow Sensor MaterialsStandard:Cast Steel
Optional: Stainless Steel

Experience superlative precision with the MOF 200-Oval Gear Flow Meter-now available at an unbeatable price cut! This magnificent device, crafted by Mial Instruments, is engineered for invincible performance even under intense operating temperatures (up to 200C) and high pressure (up to 6.3MPa). Perfect for oil media, it supports a flow rate of 0.5 to 5 LPM, providing analog output and robust connectivity via Modbus RTU RS485. Limited stock available-shop now to secure reliability, accuracy (0.2%), and industrial strength in your operations!

Applications and Usage of MOF 200-Oval Gear Flow Meter

The MOF 200-Oval Gear Flow Meter is extensively used in oil processing industries and hydraulic systems. It is designed for fluids up to 100 cSt viscosity, ensuring visible, accurate measurement of flow rates between 0.5 and 5 LPM. This equipment is essential for monitoring and controlling liquid flow in pipelines with DN8mm-DN200mm pipe sizes. Ideal for refineries, lubricant blending, and industrial automation, its robust build enables dependable performance in demanding environments.


Shipping, Market and Order Fulfilment for MOF 200

MOF 200-Oval Gear Flow Meters are shipped through trusted freight and transport services, ensuring secure delivery. Our standard packaging includes sturdy crating to withstand extended routes and rough handling, safeguarding your investment during transit. We process orders efficiently, targeting prompt dispatch via the main FOB port at India's major maritime hubs. Serving the main domestic market and global clients, we provide seamless experience from order processing to final delivery.


FAQ's of MOF 200-Oval Gear Flow Meter:


Q: How does the MOF 200-Oval Gear Flow Meter operate?

A: The MOF 200 works by using intermeshing oval gears that rotate as fluid passes through, ensuring an accurate analog output (4-20mA) in real-time measurement.

Q: What applications is the MOF 200 Flow Meter best suited for?

A: This meter is optimal for oil and other low-viscosity liquids, making it invaluable in lubrication systems, hydraulic pipelines, and refineries requiring precision flow monitoring.

Q: Where can the MOF 200-Oval Gear Flow Meter be installed?

A: It can be installed in process lines with pipe diameters ranging from DN8mm to DN200mm and those fitted with ANSI 150 flanges, meeting industrial standards.

Q: When should the MOF 200 be used in an industrial process?

A: Use the MOF 200 whenever you need to monitor and control oil flow rates within a range of 0.5-5 LPM and temperatures up to 200C.

Q: What is the process for ordering and shipping the MOF 200 Flow Meter?

A: Place your order with our team; once processed, the flow meter is packed securely and shipped via major freight services, with FOB shipment from India's key ports.

Q: What benefits does the MOF 200 offer over conventional flow meters?

A: With its 0.2% accuracy, robust cast iron body, and adaptive connectivity options, MOF 200 provides reliability, long life, and ease of integration into existing systems.

Technical Details

MOF 200-Oval Gear Flow Meter
