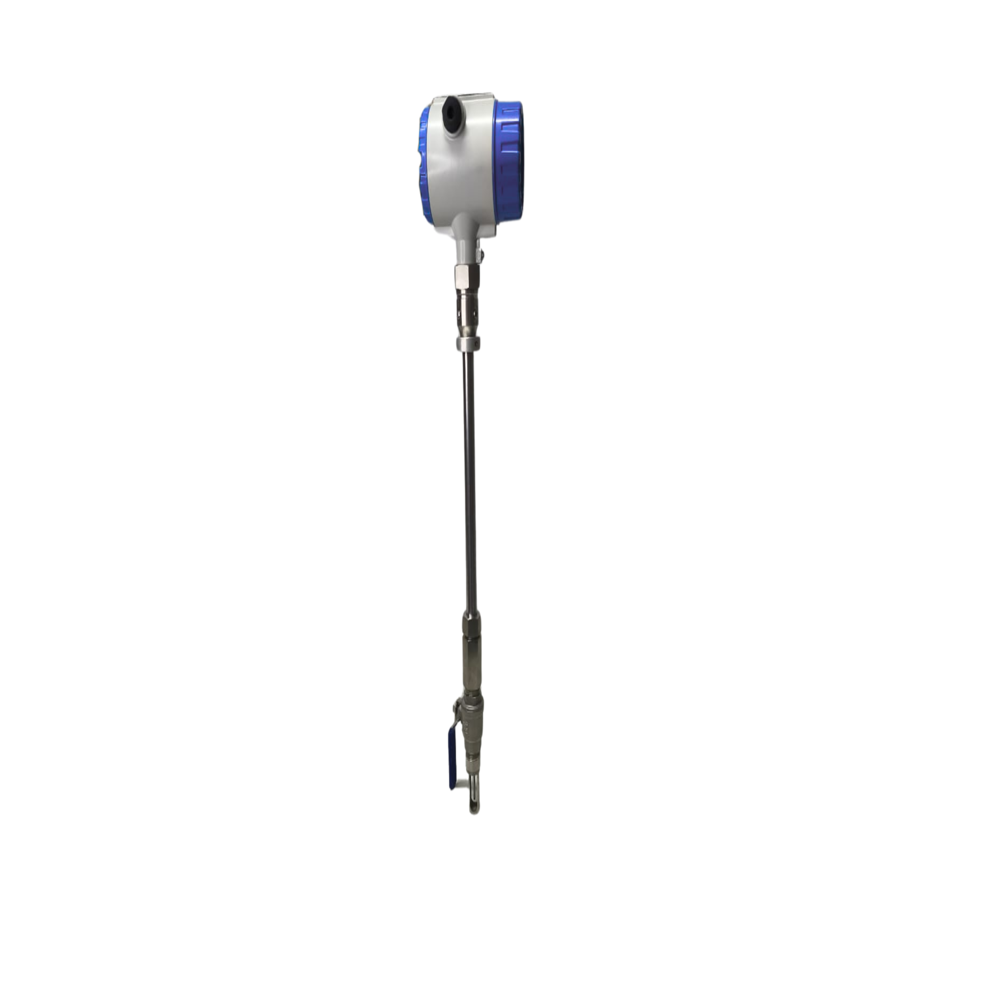

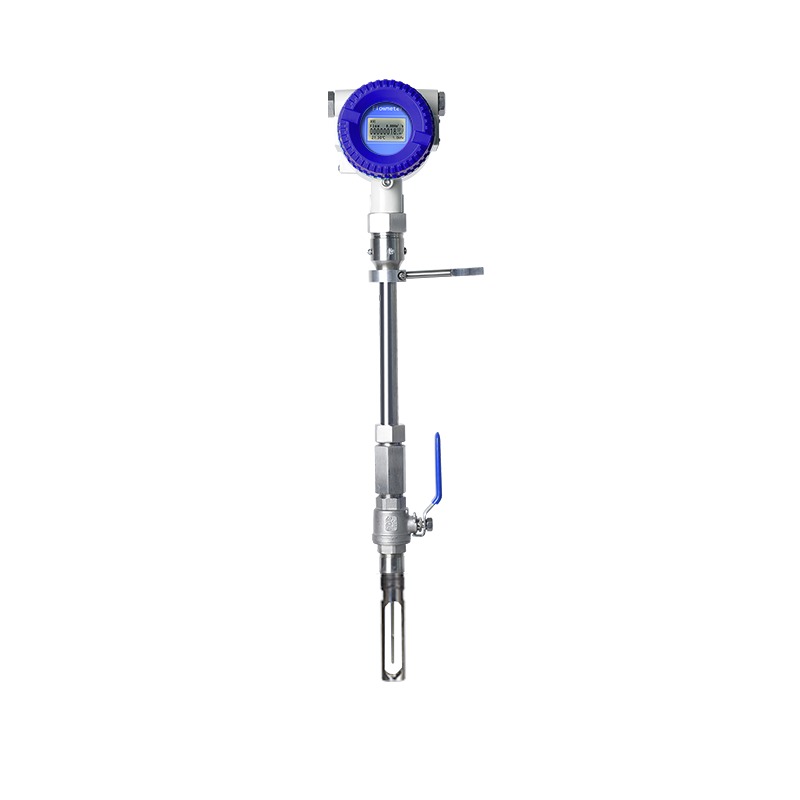

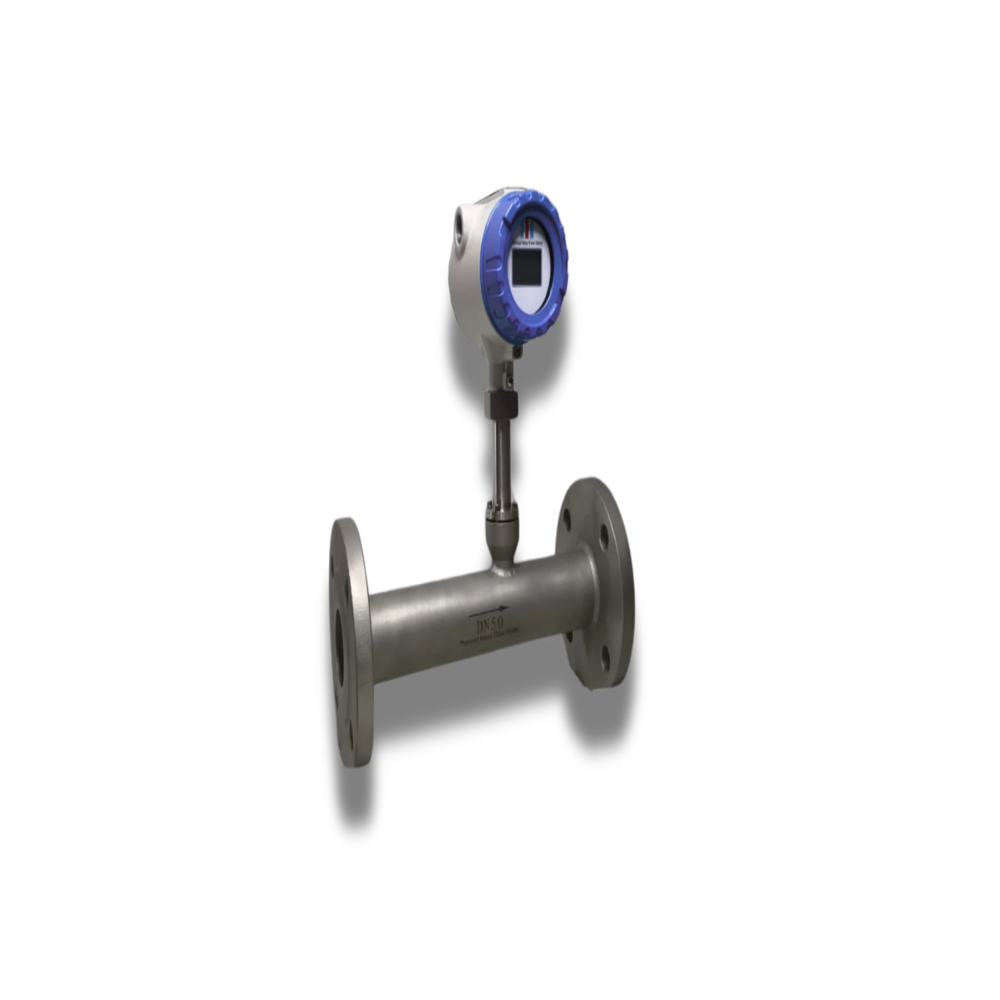

Send InquiryMTF 500 INLINE THERMAL MASS FLOW METER
Price 158802.0 INR/ Unit
MOQ : 1 Unit
MTF 500 INLINE THERMAL MASS FLOW METER Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 30 Days
- Main Domestic Market
- All India
- Certifications
- Calibration certification
MTF 500 INLINE THERMAL MASS FLOW METER About
| Flow measurement | Thermal dispersion |
| Fluid types | Various gases (Except the acetylene) |
| Fluid properties | Thermal Conductive Fluid |
| Pipe sizes | DN 15mm -DN 300mm |
| Pipe materials | Standard: Carbon steel Optional : Stainless steel,Plastic, etc |
| Flow accuracy | 1.0% |
| Velocity | 0.1~100 Nm/s |
| Flow rate turndown | 100:01 |
| Measurement parameters | Mass flow rate, Nominal flow rate, Flow totallizer, Velocity, |
| Certification | Calibration certification |
| Transmitter Type Standard | Standard : Integral Optional :Remort |
| Enclosures Transmitter Type | Aluminium |
| Enclosure IP rating | IP65 |
| Power supply | 24 VDC,2A |
| Ambient temperature | 32F to 140F (0C to 60C) |
| Standard output | 4-20mA Pulse output |
| Alarm Output | 1-2 way Relay, Normally Open state 5A/30V/DC |
| Network Connection | Modbus RS 485 |
| Operating Temperature range | -40 F to 428 F (-40C to 200C) |
| Nominal Pressure | Srandard : 1.6 Mpa Optional : 2.5Mpa, 4.0 Mpa (Inline) |
| Process connections | ANSI class 150 Flanges |
| Materials | Stainless Steel 316 |
| IP rating | IP65 |
ABOUT
Introducing the MTF 500/600 Thermal Mass Flow Meter, precise gas flow measurement for various sectors. Advanced thermal dispersion technology ensures accuracy and durability. Ideal for optimizing industrial, HVAC, and ensuring environmental compliance, its compact design simplifies installation. Perfect for chemical production, environmental monitoring, or aerospace testing, it provides reliable data for all gas monitoring needs.
Features
- Measuring the Mass Flow or Volume Flow of Gas
- Optional* Temperature Monitoring
- Exceptional Vibration Resistance and Long service Life
- Easy Installation and Maintenance
- Digital Design for High Accuracy and Stability
FAQ
Q: What is the MIAL Inline Thermal Mass Flow Meter used for?
A: It is used for accurate measurement of air and gas flow applications.
Q: Is the thermal mass flow meter suitable for compressed air systems?
A: Yes, it is ideal for compressed air and industrial gas monitoring.
Q: Does the meter require pressure or temperature compensation?
A: No, the meter provides direct mass flow measurement without external compensation.
Q: Can the MIAL Thermal Mass Flow Meter measure low flow rates?
A: Yes, it offers excellent sensitivity for low flow measurements.
Q: Is the meter suitable for industrial applications?
A: Yes, it is designed for HVAC, process industries, and utility gas applications.
