MULR-Mial Ultrasonic Level Sensor
MULR-Mial Ultrasonic Level Sensor
images Send Inquiry
Request To Call Back

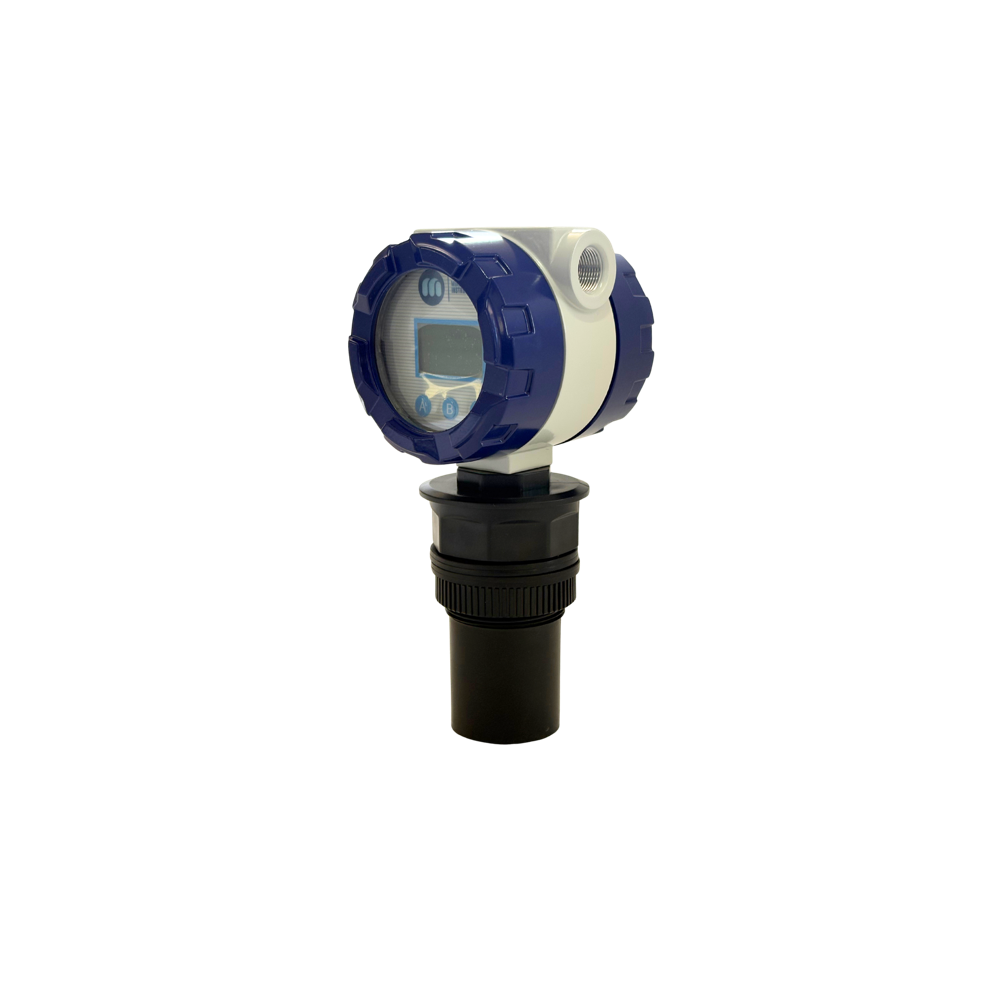

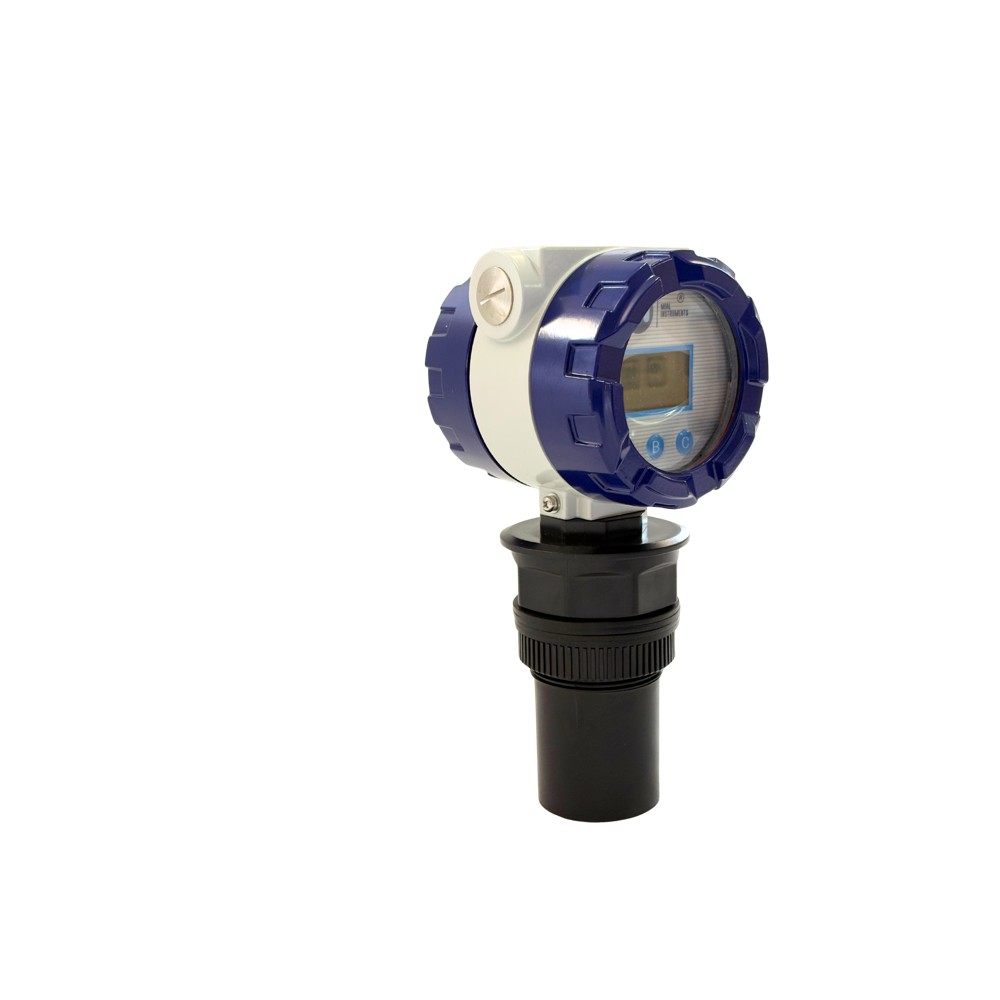

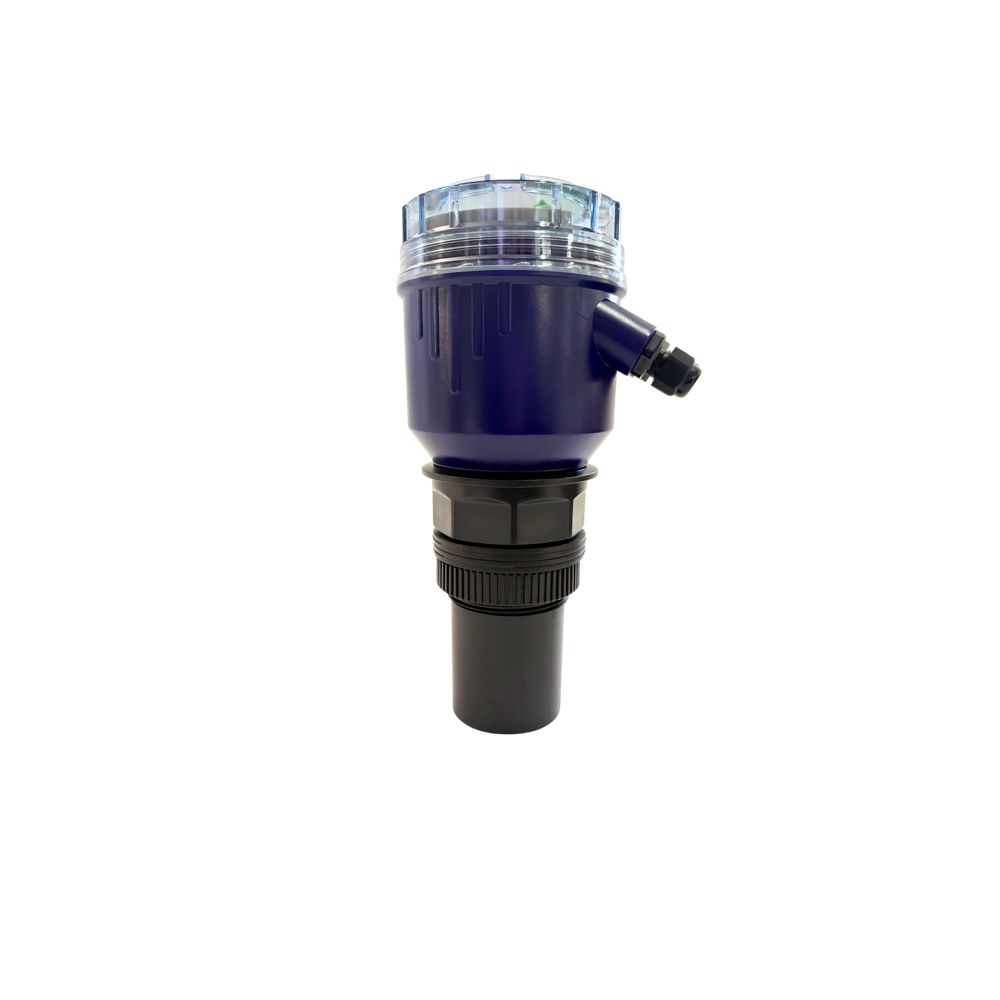

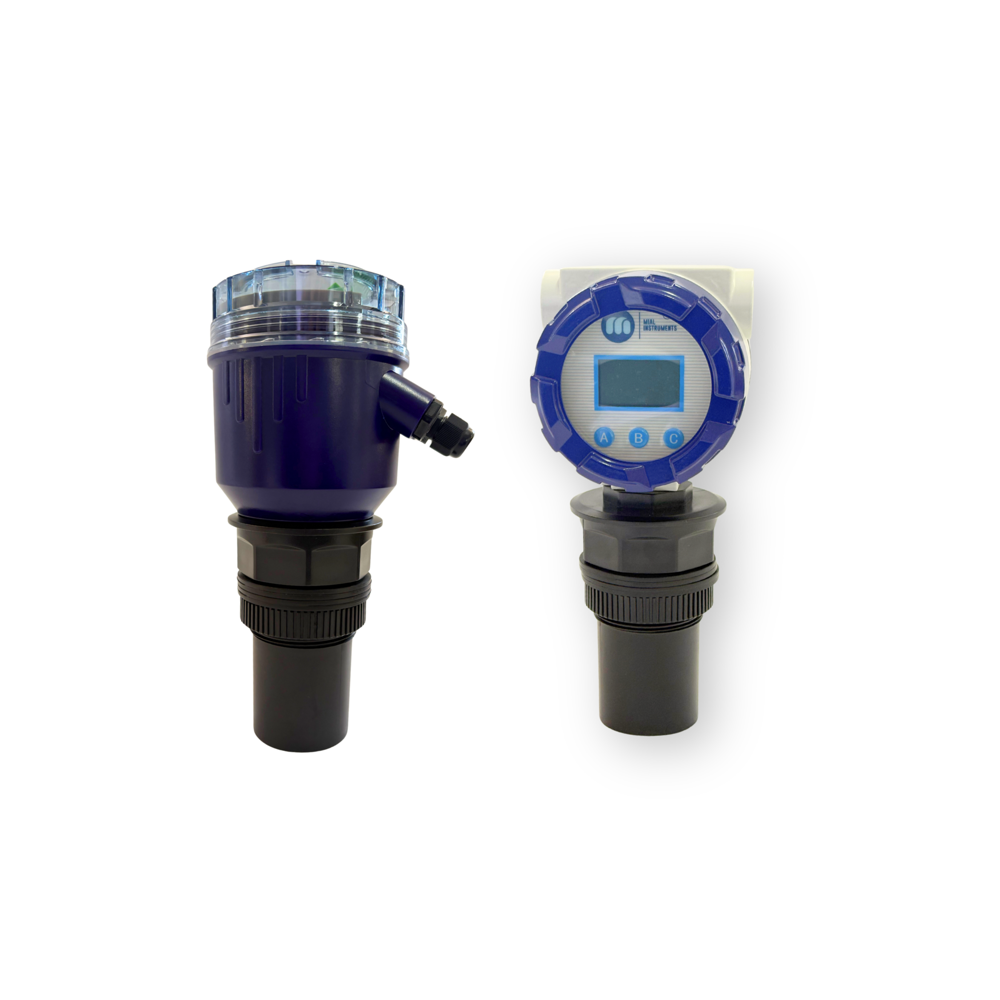

MULR-Mial Ultrasonic Level Sensor

Price 43540 INR/ Unit

Get a Price/Quote
MOQ : 1 Unit

MULR-Mial Ultrasonic Level Sensor Specification

  • Model
  • MULR
  • Mounting
  • Threaded
  • Housing Material
  • Polycarbonate ABS
  • Equipment Type
  • Ultrasonic Level Sensor
  • Output Type
  • Analog
  • Analog Output
  • 4 to 20 mA
  • Ingress Protection
  • IP65
  • Maximum Load
  • 250 ohm


MULR-Mial Ultrasonic Level Sensor Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 30 Days
  • Main Domestic Market
  • All India


About MULR-Mial Ultrasonic Level Sensor

Feature

  • Integrated Design
  • LCD Display
  • Advanced Clamp Type Wiring Terminal
  • Selectable Probes
  • Non- Contact Measurement
Operation and performance
Fluid typesClean liquids
Level RangeClean liquids
Level Range0-4m,0-6m,0-8m,0-10 m
Accuracy0.5% FS
Resolution1mm
Measurement ParametersLevel, Temperature, Current O/P
Blind zone40 cm
DisplayLCD
EnclosuresStandard :ABS & Aluminum
Optional : Aluminum Explosion-proof
Power Supply24 VDC
Process ConnectionThread: BSP
Electrical Interface :ABS Model :M16x1.5
Explosion Proof : M 20x1.5
Buttons:3-digit Light Patch buttons
Operating T emperature-20 - 60 C
Operating Humidity0-95%RH
Standard output4-20mA+RS485 Modbus+2 Channel Relay
Probe MaterialsStandard: ABS
Enclosure IP ratingIP65
Sensor IP ratingIP68




Order Today to secure the gilt-edged MULR-Mial Ultrasonic Level Sensor, a peerless solution for precise liquid level measurement. Featuring a resilient polycarbonate ABS housing and analog output (4 to 20 mA), each sensor supports a maximum load of 250 ohms and operates within a broad measurement range of 4m to 20m. With an accuracy of 0.5-1.0% and unmatchable 3mm or 0.1% resolution, this ephemeral deal delivers industrial-grade, IP65-protected performance. Mount easily via threaded installation, and enjoy a robust digital LED display. Available for dispatch from India-order now for a limited-time offer!

Versatile Uses & Special Features of MULR-Mial Ultrasonic Level Sensor

MULR-Mial Ultrasonic Level Sensor serve a wide range of liquid measurement needs in industries such as water treatment, chemical processing, and manufacturing. Their special features include high-resolution detection (3mm or 0.1%), robust IP65 ingress protection, and a digital LED display for instant readings. With multiple range options from 4m up to 20m, these sensors are ideal for monitoring storage tanks, process vessels, and open channels. Designed for reliable operation, they ensure dependable level management in diverse environments.


Packaging, Export Markets & Certifications for MULR Ultrasonic Sensors

Every MULR Series sensor is meticulously packed to ensure safe delivery upon your purchase order. Outlays include secure protective packaging and clear documentation. We cater to main export markets such as Southeast Asia, the Middle East, Africa, and Europe. Timely dispatching is guaranteed to meet urgent client requirements. Each sensor is quality tested and supplied with major certifications, confirming compliance with international standards. Choose MULR for trusted export, certified quality, and swift worldwide distribution.


FAQ's of MULR-Mial Ultrasonic Level Sensor:


Q: How do MULR-Mial Ultrasonic Level Sensor function in liquid applications?

A: MULR-Mial Ultrasonic Level Sensor emit ultrasonic pulses that travel through the air and reflect off the liquid surface. The sensor calculates the distance by measuring the time the echo takes to return, delivering accurate level readings for various liquid applications.

Q: What are the main benefits of using MULR Ultrasonic Level Sensors?

A: Key benefits include high accuracy (0.5%-1.0%), exceptional resolution, maintenance-free operation due to non-contact measurement, and a digital LED display for real-time monitoring. Their robust IP65 housing ensures reliable performance in tough industrial conditions.

Q: When should MULR Series sensors be chosen over other level measurement solutions?

A: These sensors are ideal when non-contact, high-precision monitoring is needed for liquids, particularly in applications involving corrosive, dirty, or viscous media where contact methods may fail.

Q: Where are MULR Series Level Sensors commonly installed?

A: MULR sensors are typically mounted on tanks, vessels, and open channels in industries such as water treatment, chemical plants, and manufacturing facilities-anywhere accurate liquid level monitoring is essential.

Q: What is the installation process for MULR-Mial Ultrasonic Level Sensor?

A: They are mounted using a threaded connection. Installation requires 24 VDC power supply and connection to an analog (4-20 mA) input device. Once set up, configuration is straightforward via the digital LED interface.

Q: How can I order MULR-Mial Ultrasonic Level Sensor from the manufacturer in India?

A: Place a purchase order directly with the manufacturer, exporter, or supplier located in India. Upon confirmation, the sensors will be securely packed and dispatched to your chosen destination.
