Price 275000.00 INR/ Unit

MOQ : 1 Unit

MUF 1000 PORTABLE ULTRASONIC FLOW METER Specification

  • Protection
  • IP54
  • Output
  • 4 20 mA, RS485 Modbus RTU, SD Card
  • Mounting
  • Clamp-On / Non-Invasive
  • Equipment Type
  • Portable Ultrasonic Flow Meter
  • Pressure Range
  • 0.09 ft/s~ 16 ft/s
  • Housing Material
  • Language
  • English
  • Humidity %
  • Up to 99% RH, Non-Condensing
  • Connecting Type
  • Clamp-On
  • Operating Temperature
  • -40 C to +80 C Celsius (oC)
  • Velocity Range
  • 0.01 m/s to 12 m/s
  • Length
  • 5 m Meter (m)
  • Signal Type
  • Ultrasonic Differential Transit-Time
  • Diameter
  • 25mm to 1200mm Millimeter (mm)
  • Application Media
  • Water
  • Model
  • MUF 1000
  • Sensor Type
  • Clamp-On Ultrasonic Transducer
  • Process Connection
  • External Clamp-On
  • Connectivity Type
  • RS485 Modbus RTU
  • Measurement Range
  • 25mm to 1200mm
  • Temperature Range
  • -40 C to +80 C Celsius (oC)
  • Flow Rate
  • 0.09 ft/s to 16 ft/s
  • Input
  • Rechargeable Lithium Battery, 3000 mAh
  • Current Range
  • 4 20 mA Milliamperes (mA)
  • Usage
  • Portable, Non-Invasive Liquid Flow Measurement
  • Size
  • 25 mm to 1200 mm
  • Material
  • SS / CS
  • Power Supply
  • 24VDC
  • Height
  • 24 Centimeter (cm)
  • Product Type
  • Clamp-On Ultrasonic Transducer
  • Weight
  • 8 Kilograms (kg)
  • Accuracy
  • 1% %
  • Display Type
  • Digital Only
  • Width
  • 30 Centimeter (cm)


MUF 1000 PORTABLE ULTRASONIC FLOW METER Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 14 Days
  • Main Domestic Market
  • All India


About MUF 1000 PORTABLE ULTRASONIC FLOW METER

Fluid Types Water
Pipe Sizes 1" to 48" (25 mm to 1200 mm)
Accuracy 1%
Flow Range 0.09 ft/s ~ 16 ft/s
Standard Outputs 4~20 mA
Network Connection RS 485 Modbus RTU
Data Logging 16 GB
Power Supply Rechargeable Lithium Battery, 3000 mAh (Continuous operation of main battery: 16 hours)
Display 240 128 backlit LCD
Transducer Temperature -15C ~ 80C
Transmitter NEMA 13, IP54
Transducer Encapsulated design, IP68 Standard
Transducer Cable Cable length: 5 m
Keyboard Digital keys

ABOUT

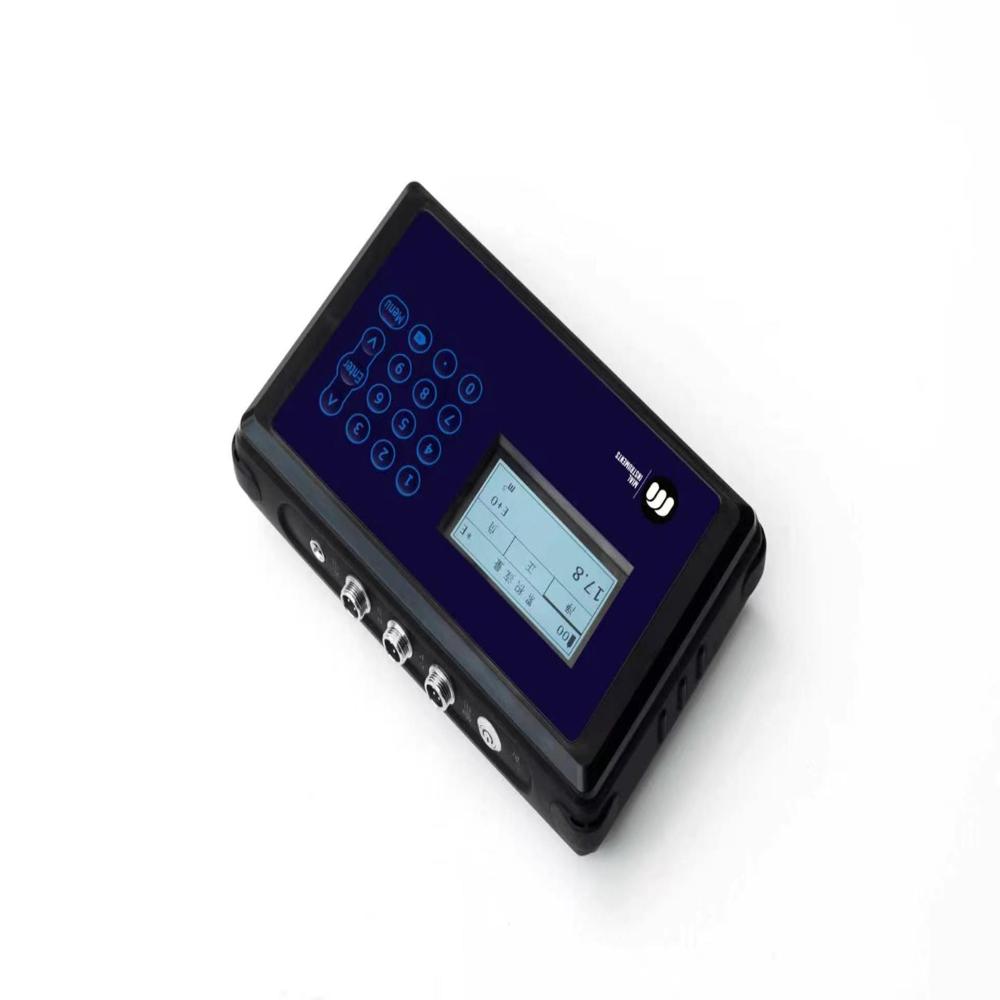

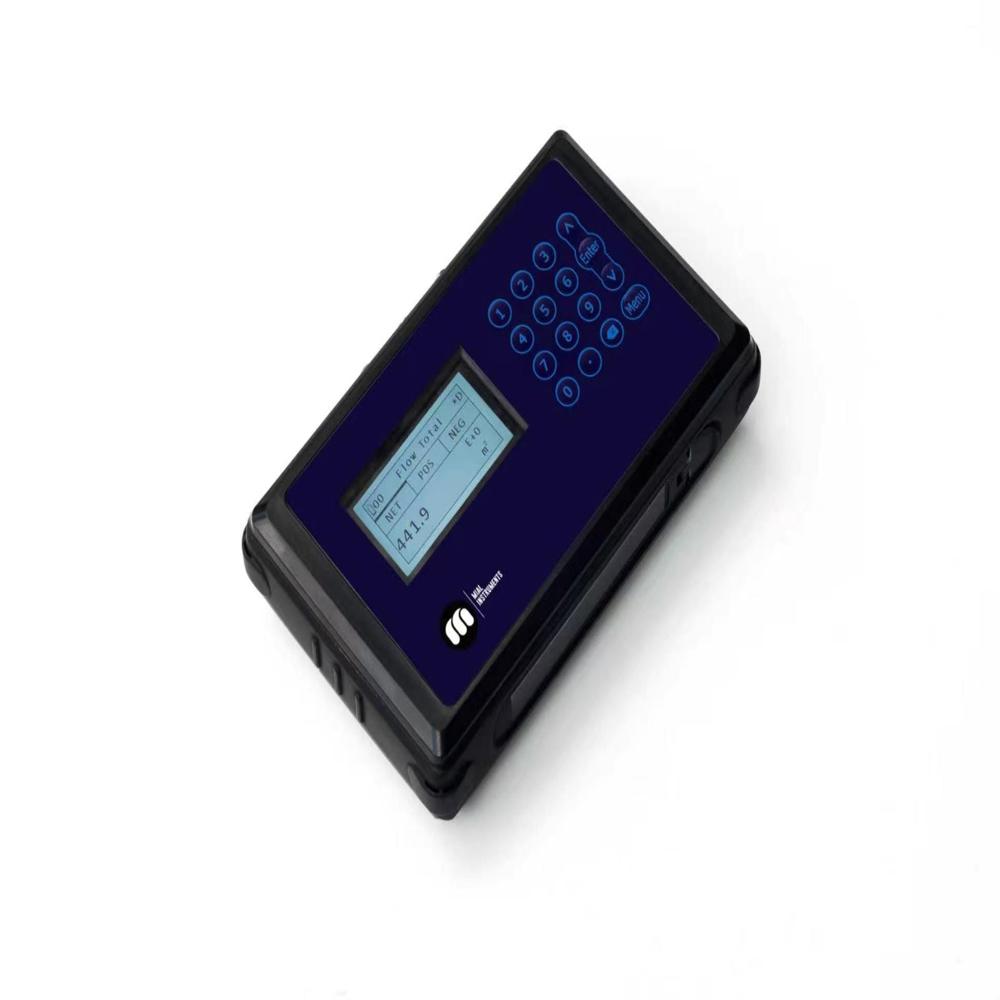

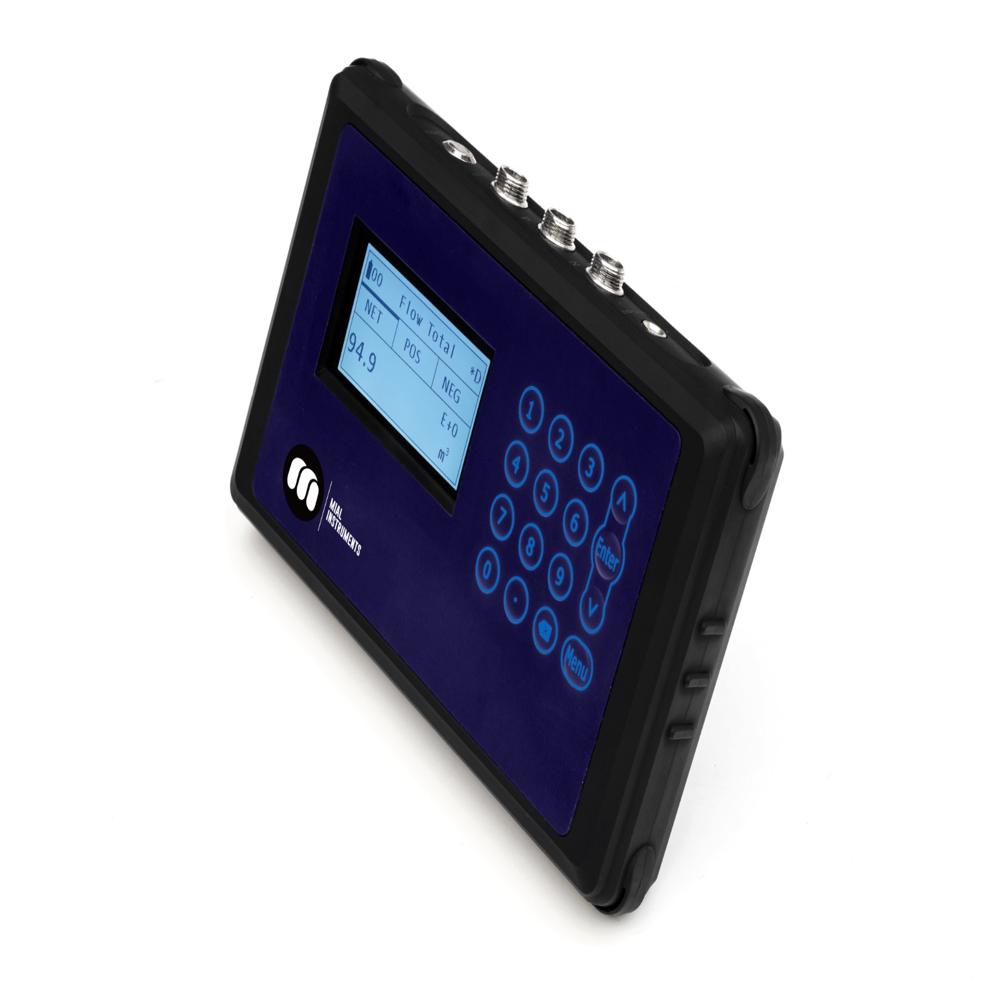

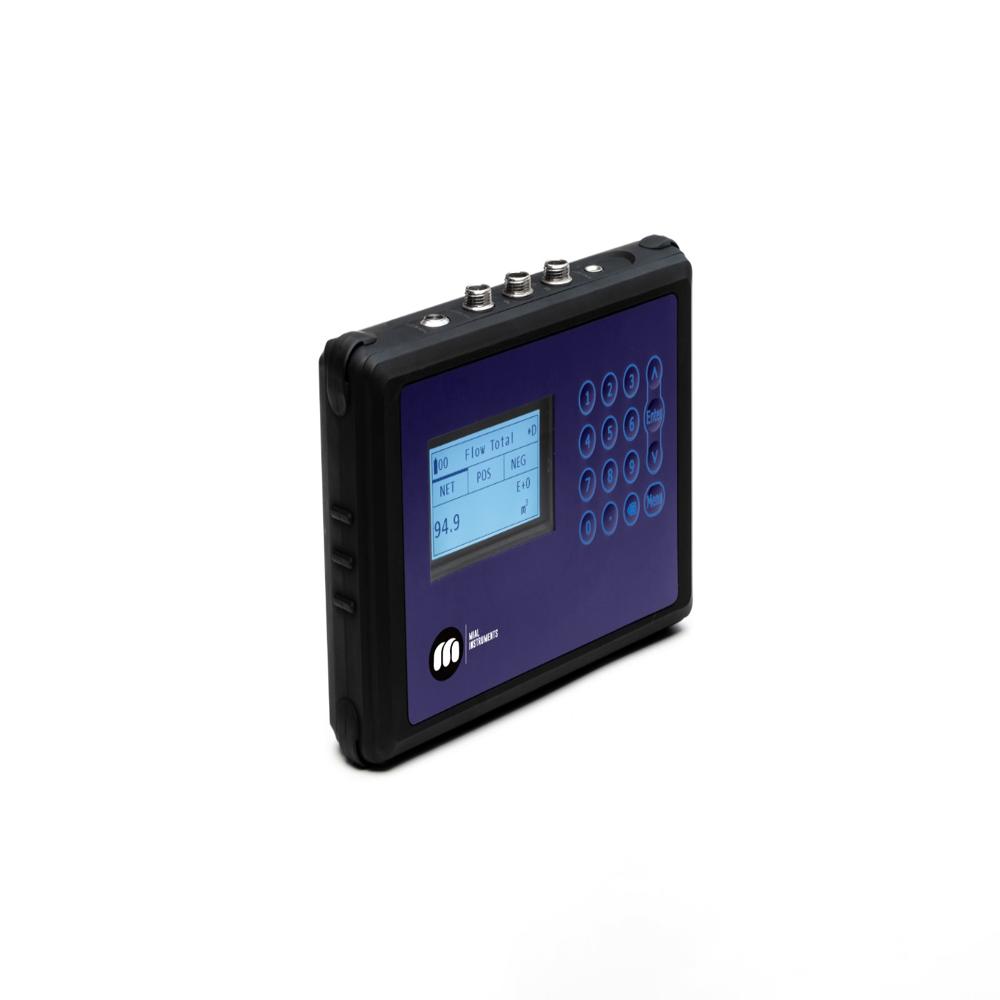

Meet the MUF 1000 Transit Time Ultrasonic Flowmeter, a revolutionary tool for noninvasive flow measurement. Engineered for versatility, this portable meter leverages ultrasonic technology to accurately assess liquid flow without altering your pipes. Perfect for industries ranging from manufacturing to power generation, and essential for HVAC efficiency, the MUF 1000 simplifies maintenance and system evaluations with its clamp-on design, offering fast, precise monitoring in any Application

Features

  • Easy Installation
  • Non-Intrusive Measurement
  • Flexible and Versatile
  • Wide Liquid Temperature Range
  • Data Logger Functionality
  • Battery Operated flow meter



FAQ

Q: What is the MIAL Portable Ultrasonic Flow Meter used for?

A: It is used for temporary and non-invasive flow measurement of liquids in pipelines.

Q: Does the MIAL Portable Ultrasonic Flow Meter require pipe cutting?

A: No, it uses clamp-on sensors and does not require pipe cutting or process shutdown.

Q: Is the meter suitable for different pipe sizes?

A: Yes, it can be used on a wide range of pipe sizes (25mm to 1200 mm ) and materials.

Q: Can the portable ultrasonic flow meter store data?

A: Yes, it comes with data logging features for flow monitoring and analysis.

Q: Is the MIAL Portable Ultrasonic Flow Meter easy to carry?

A: Yes, it is compact, lightweight, and designed for easy field use.
