Ultrasonic Flow Meters

• Equipment Type

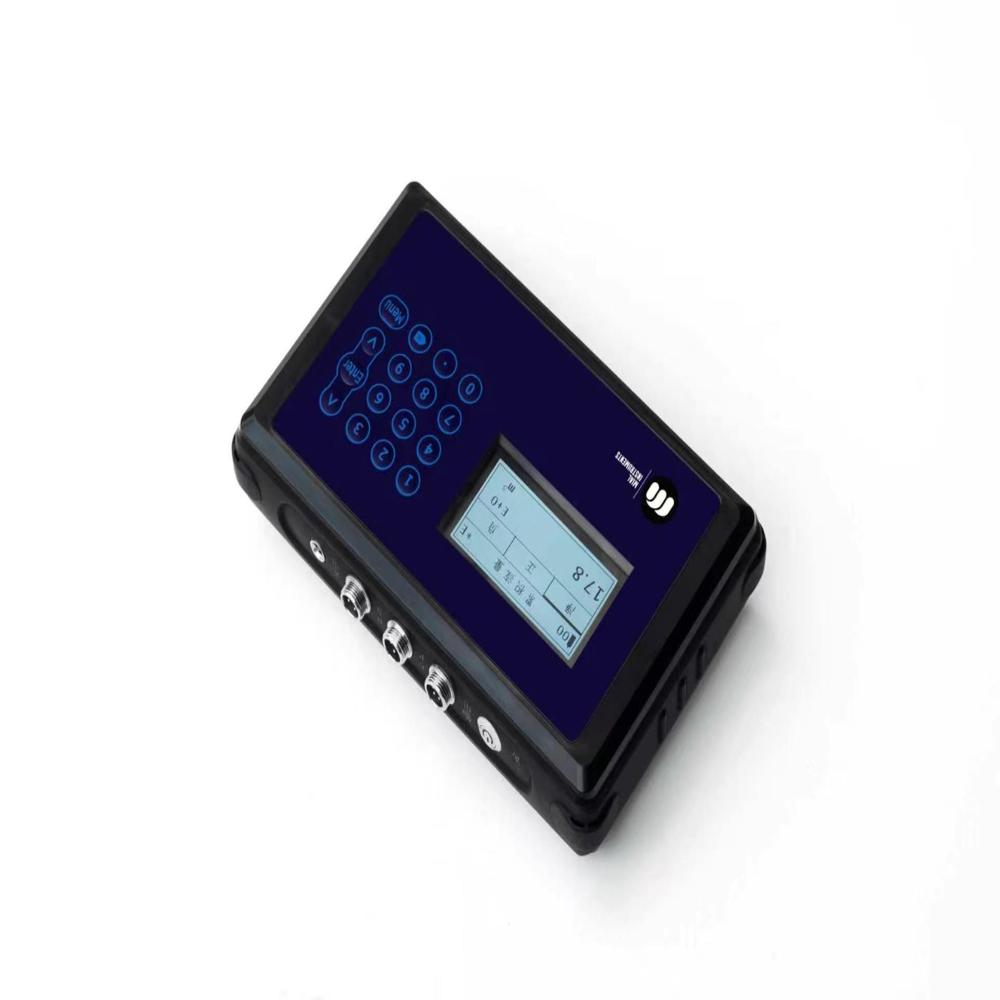

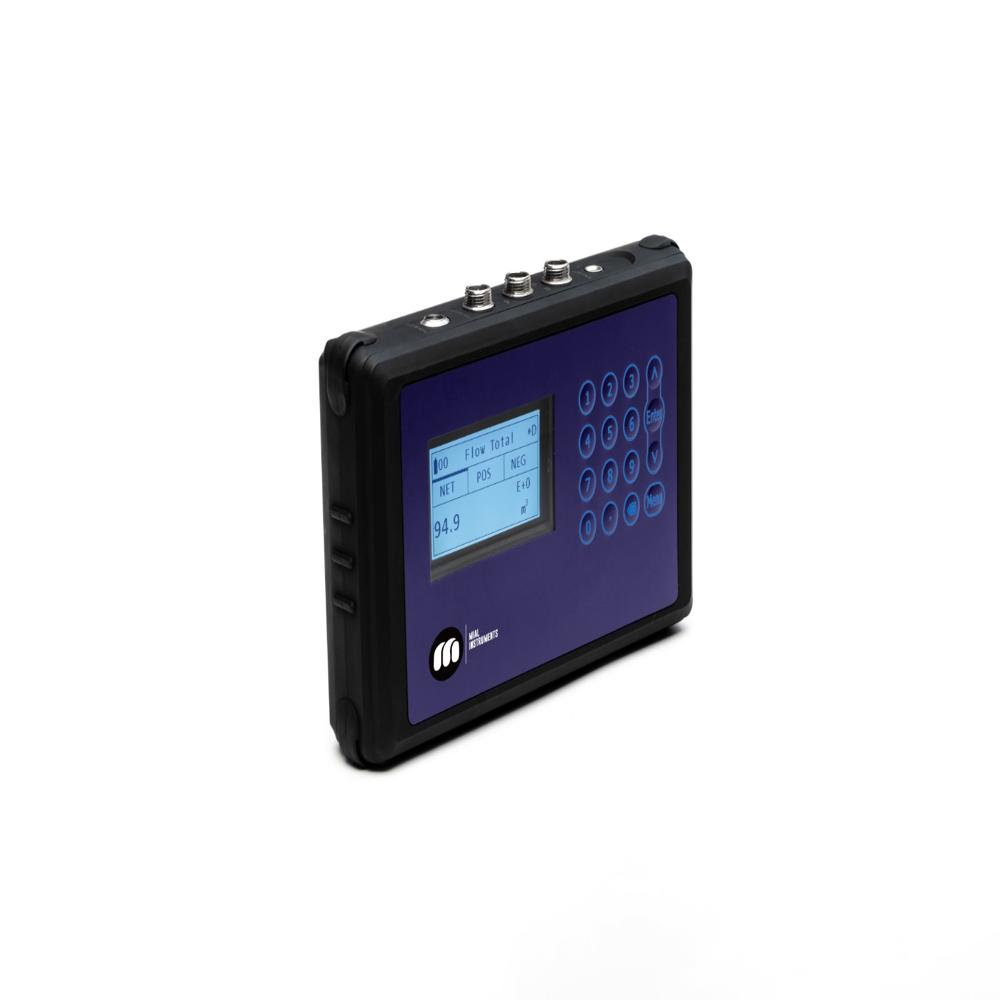

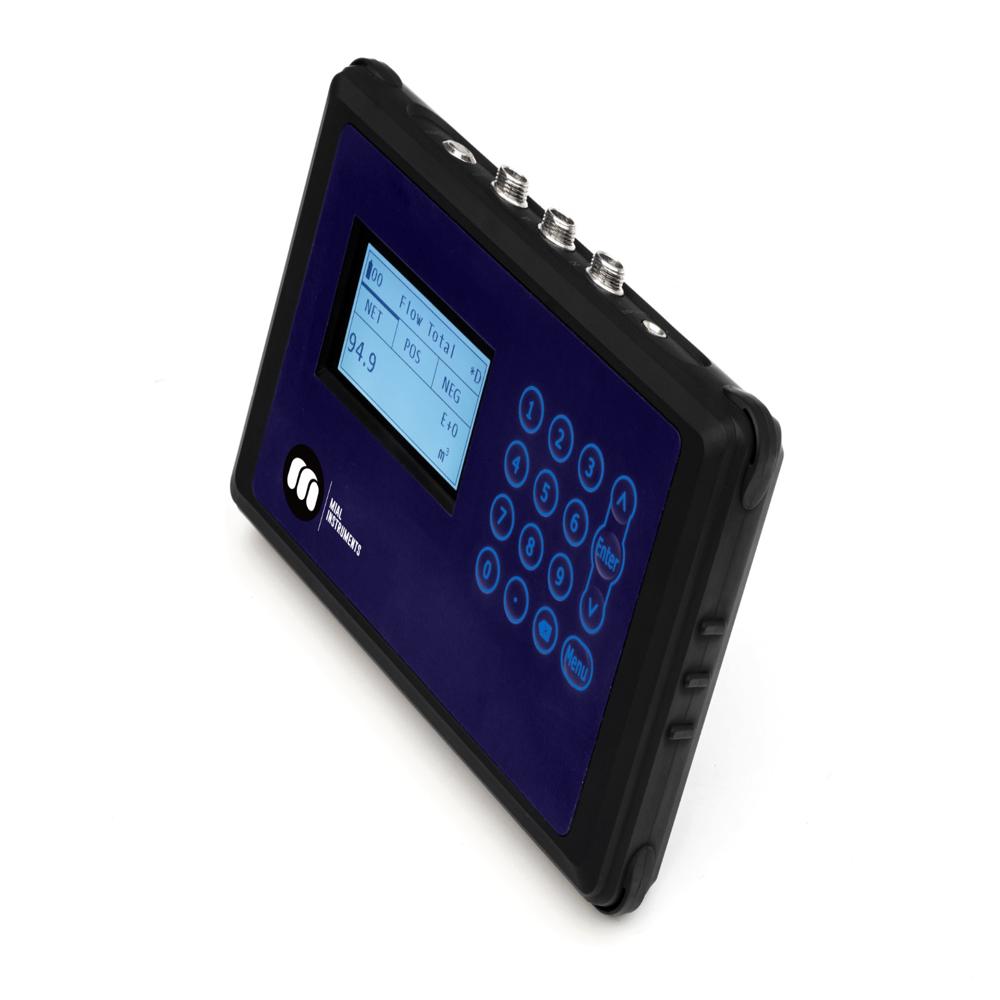

• Portable Ultrasonic Flow Meter

• Accuracy
• +/-1%

• Application Media
• Liquid (as per clamp-on ultrasonic meter application)

• Capacity
• Data Logging: 16 GB

• Connectivity Type
• RS 485 Modbus RTU

• Current Range
• Analog output: 4-20mA, max load 750 ohm

• Diameter
• 25mm to 1200mm

• Display Type
• Other, Digital

• Power Supply
• Rechargeable Lithium Battery, 3000mAh (Continuous operation of main battery 16 hours).

• Range
• Pipe Size Range: 25mm to 1200mm

• Sensor Type
• Clamp on / Strap on

• Temperature Range
• -15C to +80C

• Equipment Type

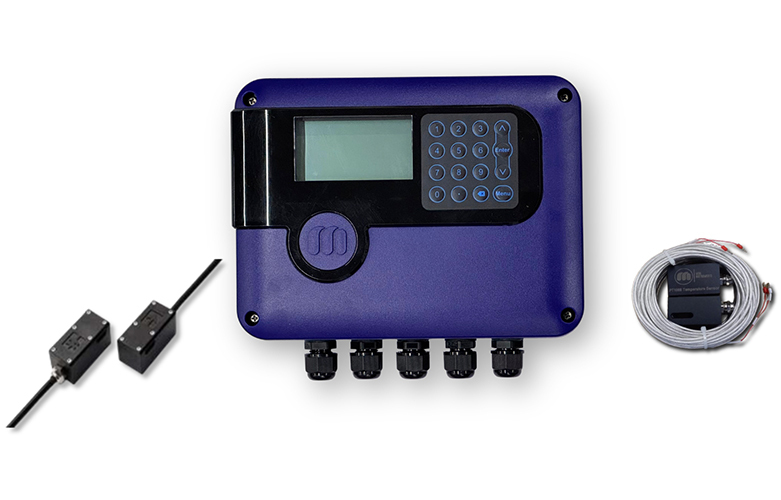

• Clamp On Ultrasonic Flow Meter

• Accuracy
• 1% of reading

• Application Media
• Water, Sewage, Oil, Chemicals, etc.

• Color
• Grey

• Connecting Type
• Clamp-on transducer

• Connectivity Type
• RS-485, 4-20mA, OCT pulse

• Connector
• Cable, Terminal Block

• Diameter
• DN15~DN6000 (0.5-240)

• Dimension (L*W*H)
• 210 x 90 x 50 mm (main unit)

• Display Type
• Other, LCD Display

• Flow Rate
• 0-32 m/s

• Frequency
• Transducer: 1MHz (standard)

• Housing Material
• ABS/Aluminum

• Humidity %
• 85% RH

• Language
• English, Chinese

• Length
• Transducer cable standard 10m

• Material
• ABS/Aluminum Alloy

• Measurement Range
• 0-99999999 m3 or gallon

• Measuring Units
• m3/h, L/min, gallons, ft3, etc.

• Model

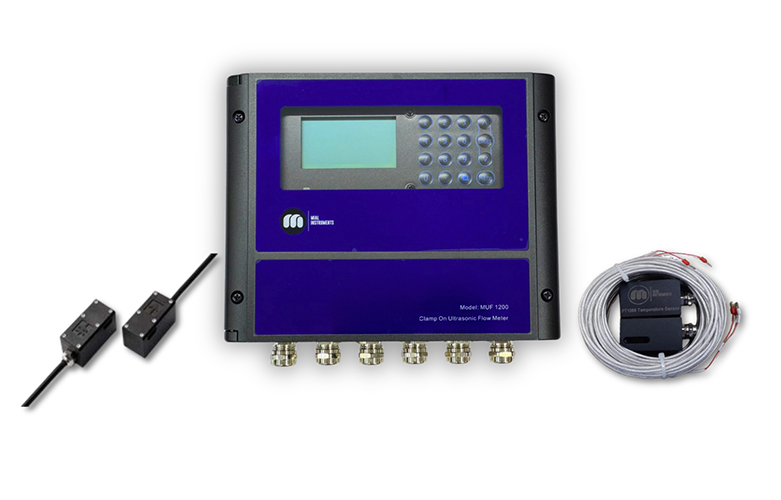

• MUF 1200

• Mounting
• Clamp-on (non-invasive)

• Operating Temperature
• -30C to +80C (main unit)

• Output
• 4-20mA, OCT Pulse, RS-485, Relay

• Power Consumption
• <2 Watts

• Power Supply
• AC 85-264V, DC 24V/500mA (optional)

• Pressure Range
• 1.6MPa (max)

• Process Connection
• Clamp-on

• Protection
• IP65

• Range
• 0-32 m/s

• Resolution
• 0.25mm/s

• Response Time
• <5 sec

• Sensor Type
• Clamp On Ultrasonic

• Signal Type
• Ultrasonic

• Stability
• 0.2% of measured value per year

• Storage Temperature
• -40C to +120C

• Temperature Range
• Transducer: -40C to +160C

• Velocity Range
• 0~32 m/s

• Equipment Type
• Inline Ultrasonic Flow Meter

• Accuracy
• 1% of reading

• Application Media
• Liquid (Water, Oil, Chemicals)

• Capacity
• Supports large flow rates

• Connectivity Type
• RS485/Modbus/4-20 mA

• Current Range
• 4-20 mA Output

• Diameter
• DN15 - DN600

• Display Type
• Other, LCD Digital Display

• Flow Rate
• 0.1 - 10,000 m3/h

• Frequency
• 1 MHz (ultrasonic transducer)

• Humidity %
• 0-95% RH (Non-condensing)

• Material
• Stainless Steel

• Measurement Range
• 0.1 - 10,000 m3/h

• Power Consumption
• < 2 W

• Power Supply
• 220V AC/24V DC

• Pressure Range
• Up to 1.6 MPa

• Protection
• IP65

• Range
• 0.1 - 10 m/s

• Resolution
• 0.001 m3/h

• Sensor Type
• Clamp-on/Inline Ultrasonic

• Temperature Range
• 0C to 160C

• Equipment Type
• Clamp-On Ultrasonic BTU Meter

• Accuracy
• 1% of reading

• Application Media
• Water, glycol, and other homogeneous liquids

• Capacity
• Supports up to 2 temperature sensors

• Color
• Grey/Blue

• Connecting Type
• Clamp-on

• Connectivity Type
• RS-485, 4-20mA, Pulse

• Cut Size
• Not required (clamp-on)

• Diameter
• DN15-DN6000mm

• Dimension (L*W*H)
• 221mm 181mm 60mm

• Display Type
• Other, 4-line LCD with backlight

• Flow Rate
• 0-32 m/s

• Humidity %
• Up to 85% RH

• Language
• English (default), other language optional

• Length
• Sensor cable standard 5m (optional 10m, 20m)

• Load Capacity
• Max. 4 channels

• Material
• ABS (transmitter), Aluminum (sensor)

• Measurement Range
• BTU: 0-99999999GJ

• Measuring Units
• m3/h, L/min, GJ, Kcal, BTU

• Mounting
• Clamp-on, wall-mounted or panel-mounted

• Operating Temperature
• -30C to +80C (transmitter), -40C to +160C (sensor)

• Output
• 4-20mA, OCT pulse, RS-485 (Modbus/RTU)

• Power Consumption
• <2W

• Power Supply
• AC 85-264V, DC 24V, or built-in battery (optional)

• Process Connection
• Clamp-on with ultrasonic sensors

• Protection
• IP65 (standard), IP68 (optional for sensors)

• Range
• Velocity: 32 m/s

• Resolution
• 0.25mm/s for velocity

• Response Time
• 1s

• Sensor Type
• Clamp-on ultrasonic, PT1000 temperature sensor

• Signal Type
• Ultrasonic transit-time

• Stability
• 0.2% over 12 months

• Storage Temperature
• -40C to +85C

• Temperature Range
• -30C to +80C (transmitter)

• Equipment Type
• Ultrasonic BTU Meter

• Accuracy
• 1.0%

• Application Media
• Water, Hot Water, Chilled Water, HVAC Media

• Capacity
• 100-10,000 m3/h

• Color
• Silver / Blue

• Connecting Type
• Flanged / Threaded

• Connectivity Type
• Wired / MODBUS

• Current Range
• -

• Cut Size
• -

• Diameter
• 15-1200 mm

• Dimension (L*W*H)
• Varies by diameter

• Display Type
• Other, LCD Display

• Flow Rate
• 0.03-12 m/s

• Frequency
• -

• Humidity %
• < 85% RH

• Language
• English

• Length
• Standard as per diameter

• Load Capacity
• -

• Material
• Stainless Steel / Carbon Steel / PVC

• Measurement Range
• 0.03-12 m/s (flow), 0-95C (temperature)

• Measuring Units
• BTU, MWh, KWh, GJ, m3/h, L/h

• Mounting
• Inline

• Operating Temperature
• -10C to +55C (transmitter)

• Output
• 4-20mA, Pulse, RS485 MODBUS

• Power Consumption
• < 1.5 W

• Power Supply
• 24V DC / Battery / 220VAC

• Pressure Range
• 1.6 MPa

• Process Connection
• Flanged / Threaded

• Protection
• IP68

• Range
• 0.03-12 m/s (flow)

• Resolution
• 0.001 m3/h

• Response Time
• < 3s

• Sensor Type
• Ultrasonic Clamp-on / Insertion / Inline

• Signal Type
• Ultrasonic

• Stability
• Long-term stability

• Storage Temperature
• -25C to +70C

• Temperature Range
• 0-95C

• Wind Speed
• -

• Accuracy
• 0.5% of measured value (with process calibration)

• Application Media
• Water

• Color
• Aluminium

• Diameter
• 25 mm - 2000 mm

• Flow Rate
• 0.09 ft/s to 40 ft/s

• Humidity %
• Up to 99% RH, non-condensing

• Material
• Aluminium (enclosure), Aluminium alloy (transducer)

• Measurement Range
• 0.09 ft/s to 40 ft/s

• Measuring Units
• Instantaneous & totalized flow; BTU: Energy, flow, temperature

• Mounting
• Horizontal or vertical

• Operating Temperature
• 32F to 140F (0C to 60C)

• Output
• 4-20 mA, Pulse, RS485 Modbus RTU

• Power Supply
• 24 VDC / 2A

• Process Connection
• Clamp-on

• Protection
• IP65 (enclosure), IP68 (transducer)

• Sensor Type
• Clamp-on / Strap-on

• Accuracy
• 1% of measured value (with process calibration)

• Application Media
• Water

• Color
• Grey/Black

• Connectivity Type
• Modbus RTU RS485

• Diameter
• 25 mm - 1200 mm

• Display Type
• Other, LCD digital display

• Flow Rate
• 0.09 ft/s to 40 ft/s

• Humidity %
• Up to 99% RH, non-condensing

• Language
• English

• Load Capacity
• 750 max load

• Material
• ABS

• Measurement Range
• 25 mm - 1200 mm pipe size

• Measuring Units
• Instantaneous & totalized flow; Energy, flow, supply & return temperature

• Mounting
• Clamp-on / Strap-on

• Operating Temperature
• 0C to 60C ambient; -15C to 60C standard fluid, up to 130C optional

• Output
• 4-20 mA, OCT pulse, alarm relay

• Power Supply
• 24 VDC / 2A (use 2A SMPS for AC power)

• Protection
• IP65 (enclosure), IP68 (transducer)

• Range
• 0.09 ft/s to 40 ft/s

• Resolution
• 0.2% of measured value (repeatability)

• Sensor Type
• PT1000 temperature sensor

• Signal Type
• Analog (4-20 mA), Pulse (0-9999 Hz)

• Stability
• EEPROM data memory

• Equipment Type
• Clamp-on Ultrasonic BTU Meter

• Accuracy
• 0.5%

• Application Media
• Water, Hot water, Chilled water, Oil, Chemicals

• Color
• Grey

• Connecting Type
• Clamp-on

• Connectivity Type
• RS485, 4-20mA, Pulse output

• Cut Size
• N/A (Non-invasive clamp-on)

• Diameter
• DN15~DN6000 mm

• Dimension (L*W*H)
• 200mm 110mm 68mm

• Display Type
• Other, LCD Digital Display

• Flow Rate
• 0~32m/s

• Frequency
• 1MHz

• Humidity %
• Up to 85% RH

• Language
• English/Chinese

• Material
• ABS Engineering Plastic

• Measurement Range
• DN15~DN6000 mm

• Measuring Units
• m3/h, L/h, CFS, GPM, tons

• Mounting
• Clamp-on, Wall-mounted

• Operating Temperature
• Host: -20C~60C, Sensor: -30C~160C

• Output
• 4-20mA, OCT Pulse, RS485/MODBUS

• Power Consumption
• <2W

• Power Supply
• AC 85~264V or DC 24V

• Pressure Range
• 1.6MPa (standard)

• Process Connection
• Clamp-on with sensor blocks

• Protection
• IP65

• Range
• 0-32 m/s

• Resolution
• 0.025% of reading

• Response Time
• 1s

• Sensor Type
• Clamp-on Ultrasonic

• Signal Type
• Ultrasonic

• Stability
• 0.02% FS/year

• Storage Temperature
• -30C~70C

• Temperature Range
• -30C~160C (with appropriate sensors)
