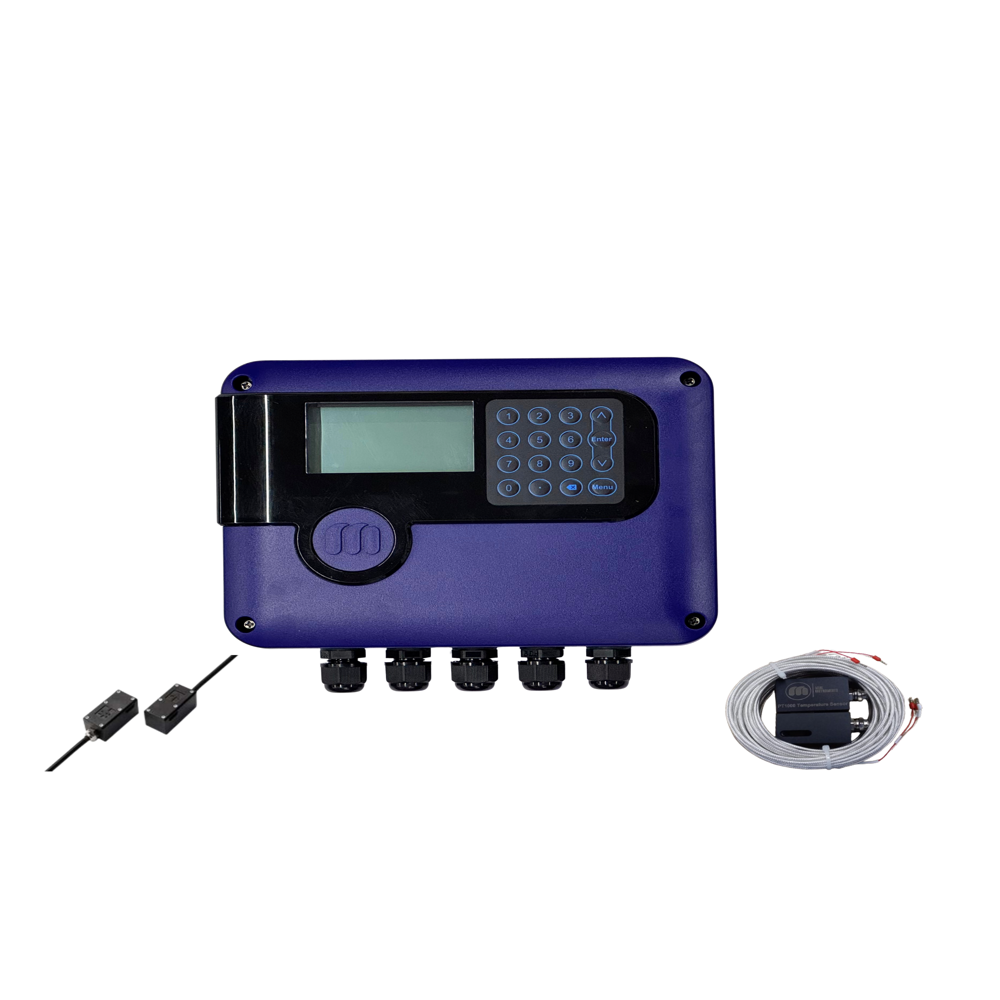

MUF (B) 1200 (1%)-Clamp on Ultrasonic BTU Meter

Get a Price/Quote

MOQ : 1 Unit

MUF (B) 1200 (1%)-Clamp on Ultrasonic BTU Meter Specification

Flow Rate
0-32 m/s

Protection
IP65 (standard), IP68 (optional for sensors)

Humidity %
Up to 85% RH

Measurement Range
BTU: 0-99999999GJ

Application Media
Water, glycol, and other homogeneous liquids

Dimension (L*W*H)
221mm 181mm 60mm

Resolution
0.25mm/s for velocity

Temperature Range
-30C to +80C (transmitter)

Equipment Type
Clamp-On Ultrasonic BTU Meter

Output
4-20mA, OCT pulse, RS-485 (Modbus/RTU)

Stability
0.2% over 12 months

Signal Type
Ultrasonic transit-time

Measuring Units
m3/h, L/min, GJ, Kcal, BTU

Load Capacity
Max. 4 channels

Diameter
DN15-DN6000mm

Color
Grey/Blue

Sensor Type
Clamp-on ultrasonic, PT1000 temperature sensor

Mounting
Clamp-on, wall-mounted or panel-mounted

Response Time
1s

Operating Temperature
-30C to +80C (transmitter), -40C to +160C (sensor)

Connectivity Type
RS-485, 4-20mA, Pulse

Connecting Type
Clamp-on

Length
Sensor cable standard 5m (optional 10m, 20m)

Language
English (default), other language optional

Process Connection
Clamp-on with ultrasonic sensors

Capacity
Supports up to 2 temperature sensors

Storage Temperature
-40C to +85C

Cut Size
Not required (clamp-on)

Material
ABS (transmitter), Aluminum (sensor)

Power Supply
AC 85-264V, DC 24V, or built-in battery (optional)

Power Consumption
<2W

Accuracy
1% of reading

Display Type
4-line LCD with backlight

Range
Velocity: 32 m/s

Maximum Pipe Length
Up to 6000mm outer diameter

Communication Interface
RS-232, RS-485, Modbus-RTU protocol

Power Backup
Rechargeable lithium battery (optional, up to 10 hours)

Enclosure Material
ABS Plastic for transmitter, Aluminum Alloy for sensors

Data Logger
Built-in, up to 2000 records

Transducer Cable Extension
Up to 500 meters with signal amplifier

Internal Clock
Real-time clock with battery back-up

Sensor Cable Length
Standard 5m, extendable up to 20m

Thermal Energy Measuring Range
-99999999.99 to 99999999.99 GJ

Menu Language
Multi-language optional

Alarm Output
Relay (optical isolated) 1A/125VAC

Sensor Mounting Method
Clamp-on, V-method, W-method, Z-method

Protection for Sensor
IP68 (optional)

Temperature Sensor
Pair of PT1000, 4-wire

Install Condition
No pipe cutting, non-intrusive installation

MUF (B) 1200 (1%)-Clamp on Ultrasonic BTU Meter Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About MUF (B) 1200 (1%)-Clamp on Ultrasonic BTU Meter

Feature

Wide Liquid Temperature
Thermal Energy Measurement Capability
Versatility Across Pipe Most Materials and Diameters

Operation and performance
Flow measurement	Ultrasonic diffrential transit-time Technology
Fluid types	Water
Fluid properties	Clean liquids in full (pressurized) pipes
Pipe sizes	25 MM - 1200 MM
Pipe materials	metallic and non-metallic materials.
Flow Range	0.09 ft/s ~ 40ft/s
Flow accuracy (velocity)	1% of the measured Value Achievable with process calibration
Repeatability	0.2% of the measured value
Linearity	1%
Measurement parameters	Flow Meter- Instantaneous flow, totalized flow Btu meter - Instantaneous energy, totalized energy, Instantaneous flow, totalized flow, supply temperature and return temperature.
Certification	Calibration certification, CE, ISO
Electronics
Enclosures	ABS Wall mounted enclosure
Enclosure IP rating	IP65
Memory	EEPROM
Power supply	24 VDC/2A Use 2-amp SMPS when employing AC power
Ambient temperature	32F to 140F ( 0C to 60C)
Humidity	Up to 99% RH,non-condensing
Standard output	Analog output : 4 to 20 mA ,750 maximum load Pulse output- 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Standard Analog outputs	Flow meter- 4 - 20 mA , Output programmed for instantaneous flow rate, 750 maximum load BTU meter- 4 - 20 mA , Output programmed for instantaneous flow rate / instantaneous energy rate, 750 maximum load
Pulse outputs	Flow meter- Pulse Programmed for Flow rate / Positive totalized flow / Net-totalized flow (Forward + Reverse Flow Total), 0~9999Hz, OCT, (min. and max. frequency is adjustable). BTU meter- Pulse Programmed for Flow rate / Positive totalized flow / Net-totalized flow (Forward + Reverse Flow Total) / Energy rate / Energy totalized (Heat total/Cool total),0~9999Hz, OCT, (min. and max. frequency is adjustable)
Alarm Relay output
Network Connection	Modbus RTU RS 485
Cable	9 m
Flow Transducer
Operating Temperature range (Fluid)	Standard: 5F to 140F (-15C to 60C) Optional: 5F to 266F (-15C to 130C)
Process connections	Clamp on/Strap on
Materials Transducer	ABS
IP rating	IP68
Meter installation orientation	Horizontal or Vertical
Energy measurement
Temperature sensor	PT1000
Mountings
Mountings	Clamp on/Strap on

Easy and Non-Intrusive Installation

The MUF (B) 1200 (1%) BTU meter is designed for hassle-free, clamp-on mounting that requires no pipe cutting or system shutdown. With selectable V, W, and Z mounting methods and adjustable sensor cable lengths, the system adapts to various site requirements, providing flexibility while minimizing downtime during setup.

Versatile Communication and Data Logging

Equipped with RS-232, RS-485, and Modbus-RTU interfaces, this meter integrates seamlessly into control systems. Its built-in data logger can store up to 2000 records, ensuring reliable data acquisition and traceability for auditing or troubleshooting. The readable LCD screen with multi-language support guarantees user-friendly operation.

Robust Construction and Reliability

The transmitter, housed in ABS plastic, and the aluminum alloy sensors provide excellent durability and environmental resistance. Optional IP68 sensor protection is available for challenging or submerged installations. Stability is maintained within 0.2% over 12 months, supported by real-time clock backup and rechargeable lithium battery options.

FAQ's of MUF (B) 1200 (1%)-Clamp on Ultrasonic BTU Meter:

Q: How is the MUF (B) 1200 BTU meter installed without interrupting service?

A: The MUF (B) 1200 meter uses clamp-on ultrasonic sensors, which attach externally to the pipe using V, W, or Z mounting methods. This process is non-intrusive, requiring no pipe cutting, drilling, or system downtime.

Q: What media can this meter measure, and what is its measuring range?

A: It accurately measures water, glycol, and other homogeneous liquids in pipes with outer diameters ranging from DN15 to DN6000mm, at flow velocities up to 32 m/s, and thermal energy from -99999999.99 to 99999999.99 GJ.

Q: When is the built-in rechargeable battery backup used, and how long does it last?

A: The optional rechargeable lithium battery provides up to 10 hours of operation during power outages, allowing uninterrupted measurement and data logging when external power is unavailable.

Q: Where can the MUF (B) 1200 BTU meter be installed?

A: It is applicable for both indoor and outdoor settings, with an operating temperature range of -30C to +80C for the transmitter and -40C to +160C for the sensors. Optional IP68 sensors allow for installation in wet or submerged locations.

Q: What are the communication options for integrating this meter into building management systems?

A: The meter offers RS-232, RS-485 with Modbus-RTU protocol, 4-20mA output, and OCT pulse output, supporting seamless integration with most SCADA and energy management platforms.

Q: How does the data logger benefit users during long-term monitoring?

A: The built-in data logger can record up to 2000 entries, ensuring essential measurement data is stored for future analysis, compliance records, and system performance reviews.

Q: What advantages does the non-intrusive clamp-on design provide over traditional insertion meters?

A: Non-intrusive installation eliminates the risks of leakage and contamination, reduces maintenance, enables fast deployment, and suits applications in existing or pressurized pipe networks without service disruption.
